Garmin Fantom 18 and 24

No Longer Available - Refer to Garmin Fantom 18x and 24x Black or White

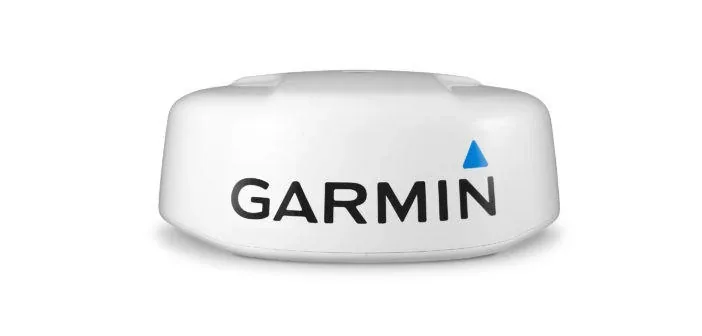

Introducing the GMR Fantom 18 and 24 dome radars. These new solid-state pulse compression radomes offer MotionScope Doppler technology and 40W of power, the highest in the industry for its kind. Available in an 18- or 24-inch footprint, they bring Garmin’s award-winning Fantom technology to a smaller size and lower price point, making dome radar an attractive option for boats where an open-array radar isn’t an option.

The Fantom series uses Doppler processing to detect moving targets in real time, helping users avoid potential collisions, find flocks of birds, and track weather. Upon detection, MotionScope highlights the moving targets on the radar display with an easy-to-see color so that users can navigate around other boats or severe weather, or toward fishing spots where birds are feeding at the surface. When the Echo Trails setting is turned on, a fading “trail” on the screen can help easily identify the direction of the moving targets and potential collision threats. The trails shown are corrected for the boat’s rotation when an autopilot or heading sensor is connected to the Garmin Marine Network.

With its pulse compression technology, the Fantom 18 and 24 provide high resolution while maximizing energy to enhance target detection. Pulse expansion can then maximize target size to help differentiate real targets from noise. The Fantom 18 features a 5.2-degree beam width, while the Fantom 24 offers a narrower 3.7-degree width that paints a very precise, high-resolution image.

Both Fantom radomes offer excellent range performance from 20 feet to 48 nautical miles, without compromise in ruggedness or reliability. Thanks to the dual range feature, mariners have the ability to see both close- and long-range simultaneously, with an overlay on a chart for one or both ranges. This eliminates the need to toggle between views, and allows the captain to keep a close eye on immediate surroundings and those on the horizon to ensure weather patterns, land and structure can always be observed.
