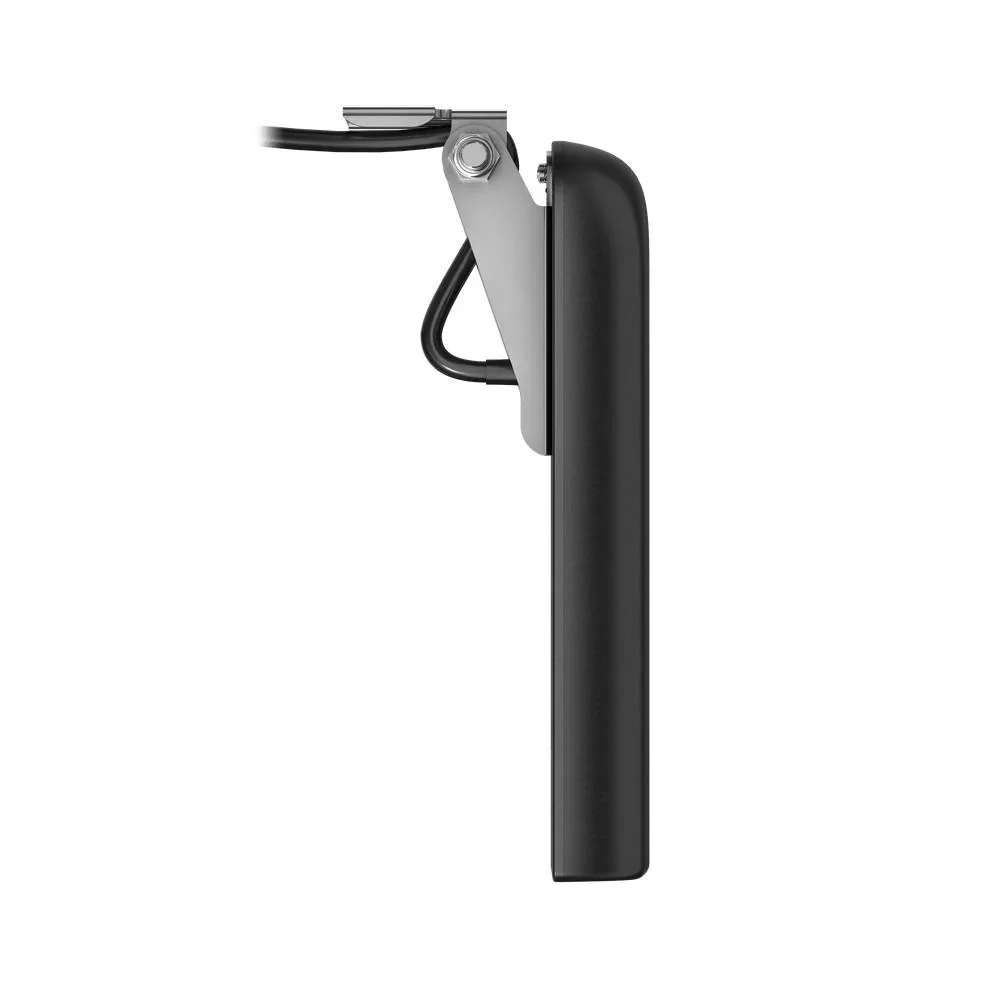

Save 15% Garmin GT51 Series Transducers - GT51M-TM Mid Band CHIRP DownVu & SideVu 260/455Khz T/M Transducer - 12 Pin
Garmin Marine

Garmin GT51 Series Transducers - GT51M-TM Mid Band CHIRP DownVu & SideVu 260/455Khz T/M Transducer - 12 Pin

PN
010-01966-00
SKU
DL-0270
UPC
753759152925
SideVüCHIRP
$771.82 $908.18

You save $136.36 (15%)

In stock

Nothing charged online — we email an invoice with shipping confirmed.

Will it work with your display?

Add your display model in the order notes or ask us first. We confirm connector and sonar compatibility before we invoice.

  • Manufacturer warranty
  • Tracked, insured shipping
  • Real help: (800) 000-0000

Overview

Garmin GT51 Transducer - GT51M-TM Mid Band CHIRP DownVu & SideVu 260/455Khz T/M Transducer - 12 Pin

Perfect for the coast and also offshore angler that want CHIRP conventional sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar, this transom mounted transducer continually shows clear as well as crisp fish arcs with remarkable target separation along with clear images of items, structure and fish that pass below and also per side of your boat as well as is optimized for rough sea conditions.

The CHIRP ClearVü/ SideVü components have a power score of 500 W per component and operating of 260/455 kHz. The standard CHIRP finder has a power rating of 600 W as well as running frequencies of mid-band CHIRP 80-160 kHz. It also includes an integrated rapid response temperature level sensor.

GT51M-TM includes a 12-pin transducer with installing equipment as well as installation directions. Adhere to the instructions carefully to stay clear of destructive your boat.

Features

Cable length 30 ft.
Power CHIRP Traditional 600 W; ClearVü/SideVü 500 W
Frequency CHIRP Mid-band (80-160 kHz); ClearVü/SideVü CHIRP 260 kHz (245-275 kHz) & 455 kHz (445-465 kHz)
Maximum depth Traditional: 1,800 ft.; ClearVü: 1,000 ft.; SideVü: 750 ft.
Number of pins 12-pin
Beamwidth Traditional: 24°-13°
ClearVü/SideVü: 2.0°x51° @ 260 kHz and 1.4°x29° @ 455 kHz
Depth/speed/temperature Depth and Temperature
Supported deadrise/transom angles 0°-70° degree transom

Specifications

Details

Cable length30 ft.
PowerCHIRP Traditional 600 W; ClearVü/SideVü 500 W
FrequencyCHIRP Mid-band (80-160 kHz); ClearVü/SideVü CHIRP 260 kHz (245-275 kHz) & 455 kHz (445-465 kHz)
Maximum depthTraditional: 1,800 ft.; ClearVü: 1,000 ft.; SideVü: 750 ft.
Number of pins12-pin
BeamwidthTraditional: 24°-13° ClearVü/SideVü: 2.0°x51° @ 260 kHz and 1.4°x29° @ 455 kHz
Depth/speed/temperatureDepth and Temperature
Supported deadrise/transom angles0°-70° degree transom

Sonar

Sonar technologySideVü, CHIRP
