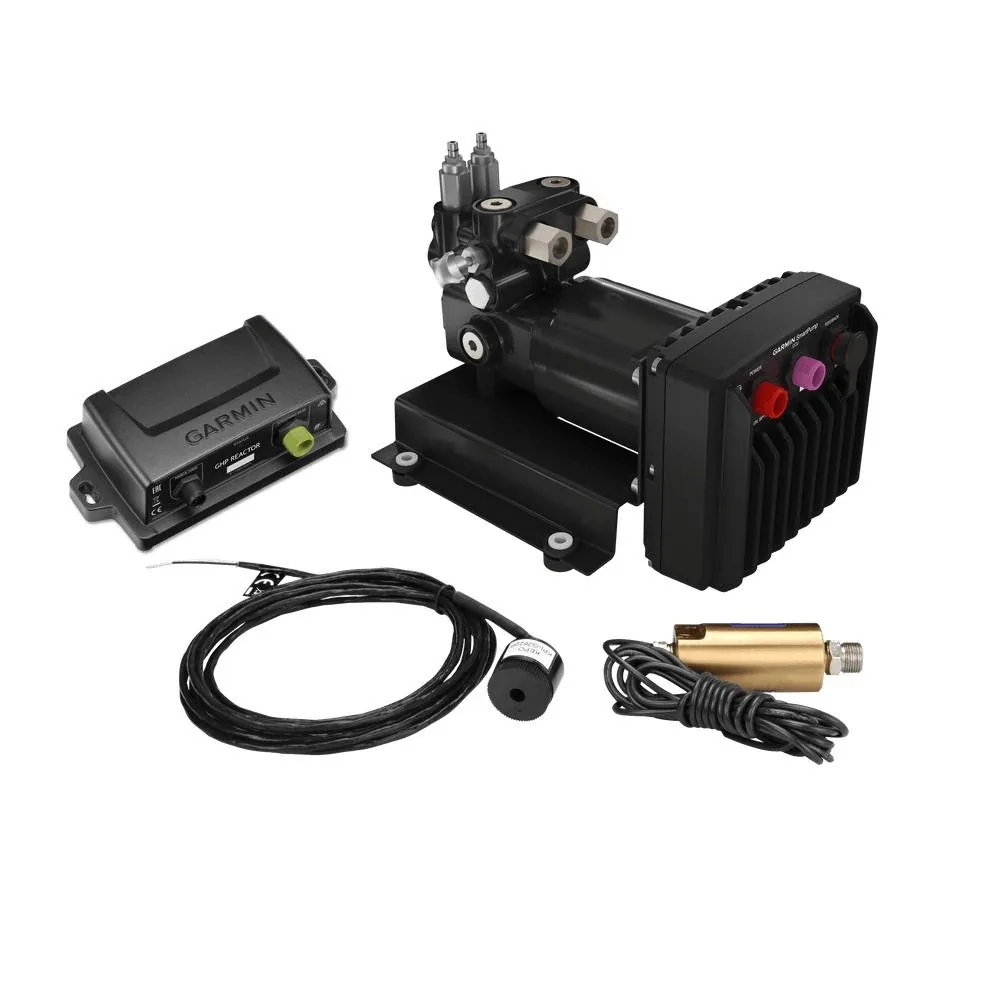

Garmin Reactor 40 Hydraulic Corepack with SmartPump without GHC 50

Reactor™ 40 Hydraulic Corepack with SmartPump without GHC™ 20

Solid-state 9-axis AHRS
With its innovative solid-state 9-axis AHRS, you can install Reactor 40 virtually anywhere, in any orientation. Additionally, this brand-new system substantially lessens heading mistake, program inconsistency, tail motion and power usage while giving a comfy trip for all on board.

Responds to Problems
This remarkable autopilot in fact reacts to the sea to hold your course. Also when the boat is pitching as well as rolling, you can continue to be confident that the 40 auto-pilot will certainly keep you on your preferred training course.

Complete Combination with Garmin Chartplotters
You have complete control of Reactor 40 from the chartplotter display. Integrated with a compatible Garmin networked chartplotter and BlueChart ® g2 Vision ® charts, you can delight in optional features such as Vehicle Guidance2, which automatically guides GPS paths.

One SmartPump Is the Easy Solution
The 40 autopilot with SmartPump v2 puts an end to presuming which pump size will certainly work with your specific boat. One SmartPump v2 benefits most watercrafts; for optimum control and self-confidence, you'll understand you have the right pump for your watercraft. And also, you obtain complete control in a smaller dimension with much better thermal efficiency, greater integrity and also reduced power consumption. It additionally includes color-coded ports to make it extremely simple to mount. Pretty wise.

Restriction the Optimum Flow Rate
40 with SmartPump v2 automatically adjusts the maximum circulation price for a particular watercraft from 0 to 2.4 L per minute. It also makes use of a brushless electric motor, which offers boosted reliability, longer pump life, decreased power intake, quiet operation, a smaller sized bundle, enhanced thermal performance and higher effectiveness.

Remove Risk of Rudder "Hard Over"
The Reactor 40 auto-pilot with SmartPump v2 is a complete auto-pilot package. SmartPump v2 is a solitary integrated device included a motor drive circuit with the pump in a single setting up. Equipped with Smart Tail Price Innovation (IRRT), it reduces the rudder price when the vessel is at high speeds and also accelerate rudder price when the vessel is at lower rates to supply ideal performance and safety and security in all problems. The brushless motor drive eliminates the danger of rudder "difficult over" as a result of equipment or software failings.

Appreciate a Longer Lasting System
Boating settings are rough, especially on saltwater. So, our SmartPump v2 is protected from the aspects. SmartPump v2 is crafted from corrosion-resistant components, consisting of plated light weight aluminum and nickel-plated steel parts.

Experience Advanced Auto-pilot Technology
When you have a Reactor 40 with SmartPump v2 aboard your watercraft, you have control any place you get on the watercraft. In addition to holding its program in practically all climate as well as wind conditions, the system can smoothly execute a selection of preprogrammed trolling and also search procedures. Plus, with a compatible Garmin networked chartplotter as well as BlueChart g2 Vision graphes (sold individually), you get optional features such as Automobile Guidance2, which automatically guides GPS courses.

Remain in Control with Shadow Drive Technology
The Reactor 40 with SmartPump v2 includes trademarked Shadow Drive modern technology. This provides you the safety and security of understanding you preserve control, also when the autopilot is engaged. The Darkness Drive system automatically disengages the autopilot if the helm is transformed, giving you the liberty to maneuver the boat. The auto-pilot instantly re-engages when you hold a consistent training course.

Add A Lot More Assurance
Include an optional GRF ™ 10 rudder responses sensing unit, and you can even more improve the performance of your 40 autopilot with SmartPump v2.

¹ Compatible Garmin chartplotter needed
² Vehicle is for preparing purposes just and does not replace safe navigation operations

Dimensions (H x W x D): 7 3/4" x 7 1/2" x 9 5/8" (197 mm x 190 mm x 244 mm)

• Weight: 16.5 lbs (7.5 kg)
• Temperature range: From 5°F to 131°F (from -15°C to 55°C)
• Material: Electronics Control Unit (ECU) - fully gasketed, aluminum alloy; bracket - carbon steel; manifold - aluminum alloy; motor - aluminum alloy
• Power cable length: 9 ft (2.7 m)
• Power input: 11.5-30 Vdc
• Fuse: 40 A, blade-type
• Main power usage: standby - less than 1 A; engaged - 5-10 A; peak - 34 A
• Flow rate: Configurable from 0 to 2.4 L per minute
• Compatible with steering cylinder sizes from 4-24 cu in; 7 second lock to lock up to 17 cu in

CCU Specifications

• Dimensions: 3 19/32" diameter (91.4 mm)
• Weight: 5.6 oz (159 g)
• Temperature range: From 5°F to 131°F (from -15°C to 55°C)
• Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
• CCU cable length: 9.5 ft (3 m)
• NMEA 2000 power input: 9-16 V
• NMEA 2000 LEN: 3 (150 mA)

Buzzer/Alarm Specifications

• Dimensions (L × Diameter): 29/32" × 1.0" (23 mm × 25 mm)
• Weight: 2.4 oz (68 g)
• Temperature range: from 5°F to 131°F (from -15°C to 55°C)
• Cable length: 10 ft (3.0 m)
