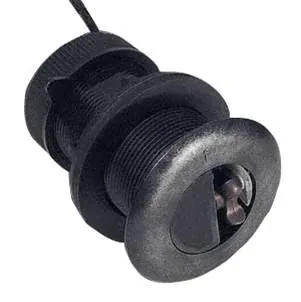

Raymarine DT800 12° Depth/Temperature Smart Transducer

DT800 12° Depth / Temperature Smart Transducer STND Raymarine

The A22112 is a version of the Airmar DST800 and is a retractable, thru-hull transducer for depth, speed and temperature. This version is for Raymarine SeaTalk NG networks and will plug directly into a t-connector on an NG backbone. It has a plastic housing with a self-closing valve to minimize water intrusion when removing the insert. This model has a twelve degree tilt.

Product key features

• Power consumption 40mA (1 LEN)

• 235kHz output will not interfere with fishfinders

• 11 x 46 degree beam width

• Maximum depth 61M (200 Ft)
• SeaTalk NG interface with attached 3M cable and standard NG connector
• Data update rate 1/second
• For digital readouts only, not for use with graphing fishfinders

• Stable and accurate speed measurement from 0.9 to 52 knots

• Minimum depth 0.4M (1.3 Ft)
