Simrad AP44 VRF Pack High Capaciity (up to 15 metres/50 feet)

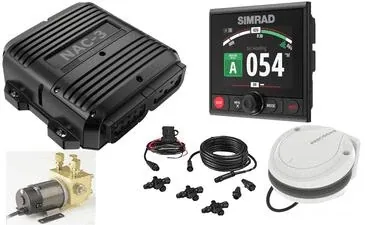

AP44 VRF high capacity pack. Comprising of AP44 controller, Precision-9 compass, RPU-160 pump and NAC-3 autopilot computer

Product Description

The AP44 Autopilot Controller combines Simrad Continuum steering technology with a full colour display, intuitive rotary dial and button controls, and modern glass helm styling. Free your hands from the wheel, cruise in comfort, and discover new ways to search for fish; this dedicated controller offers easy access to automated turn patterns, No Drift steering, depth contour tracking, and other advanced pilot features. Connect your chartplotter to add waypoint and route navigation, and enjoy full autopilot control from compatible Simrad displays.

Key Features

• Rotary-dial course adjustment with new intuitive autopilot control
• Optically bonded 4.1-inch color display
• Easy setup with auto tuning and calibration
• Simrad Continuum steering technology
• All new intuitive autopilot control
• Automated turn patterns
• No Drift steering
• Depth contour tracking
• Low-profile ‘Glass Helm’ design
• Low power consumption
• Certified NMEA 2000® connectivity

NAC-3

The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10 metres (33 feet) or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).

The Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B&G and Lowrance autopilot, radar and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.

• Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000®
• Heading and ROT calculated using sensor data from 9 axes of rotation and motion
• Accurate and reliable solid-state sensor technology
• Heading accuracy of ±2° after calibration
• Easily adjustable mounting bracket allows bulkhead or up-mast installation
• IPX7 waterproof. Best in class.
• Simple installation with a single NMEA 2000® connection

This complete autopilot pack includes everything you need to upgrade your boat with a Simrad Continuum autopilot system. Set your heading and access advanced pilot modes with the intuitive AP44 Autopilot Controller, featuring a 4.1-inch full colour display and rotary control dial. Designed for hydraulic-steered outboard and sterndrive vessels up to 15 metres (50 feet) in length, this high capacity pack also includes an RPU-160 hydraulic steering pump, NAC-3 autopilot computer, Precision-9 solid-state compass, plus all necessary NMEA 2000® cables and connectors.

Key Features

• Everything you need to build a Simrad autopilot system
• Ideal for outboard and I/O boats up to 15 metres (50 feet)
• Easy setup with automatic tuning and compass calibration
• Virtual Rudder Feedback eliminates the need to install a mechanical rudder feedback unit
• Includes the AP44 autopilot controller with optically bonded 4.1-inch colour display and intuitive controls
• Automated turn patterns for fuel-efficient, hands-free manoeuvres
• No Drift steering holds your course against wind and tide (with optional GPS receiver)
• Depth contour tracking makes it easy to fish ledges and drop-offs (with optional depth transducer)
• Includes the RPU-160 reversible hydraulic pump (for cylinder displacement of 160-550 cm3)
• Includes the high-current NAC-3 autopilot computer
• Includes the Precision-9 solid-state compass for accurate heading data that’s automatically fine-tuned as you travel
• Includes all required NMEA 2000® network connectors and cables

Complete High-Capacity System Pack

This complete pack includes everything you need to build a Simrad autopilot system for hydraulic-steered outboard and sterndrive (I/O) boats up to 15 metres (50 feet). The RPU-160 reversible hydraulic pump handles cylinder displacement of 160-550 cm3, and is driven by the high-current NAC-3 autopilot computer. This pack also includes the Simrad Precision-9 solid-state compass, plus all cabling and connectors required to build an NMEA 2000® network backbone or connect your autopilot system to an existing NMEA 2000® network.

Easy Installation and Setup

Virtual Rudder Feedback

Simrad Virtual Rudder Feedback (VRF) technology eliminates the need to install a mechanical rudder feedback unit aboard outboard and sterndrive (inboard/outboard) boats. VRF technology greatly simplifies autopilot installation while delivering uncompromising Simrad Continuum steering performance.

AP44 Autopilot Controller

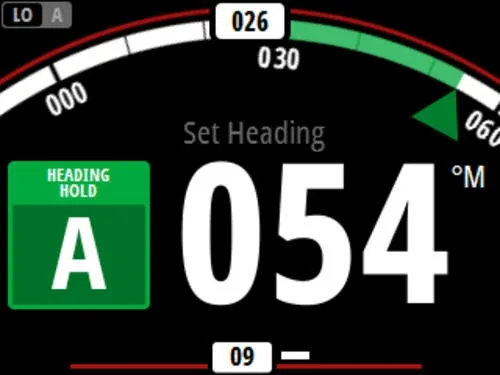

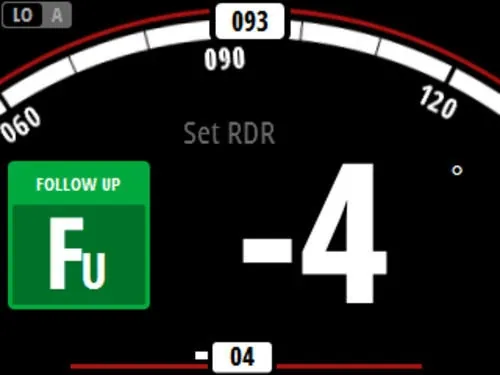

The AP44 Autopilot Controller features a full colour display, intuitive rotary dial and button controls, and modern glass helm styling. Free your hands from the wheel, cruise in comfort, and discover new ways to search for fish; this dedicated controller offers easy access to automated turn patterns, No Drift steering, depth contour tracking, and other advanced pilot features. Connect your chartplotter to add waypoint and route navigation, and enjoy full autopilot control from compatible Simrad displays.

Automated Turn Patterns

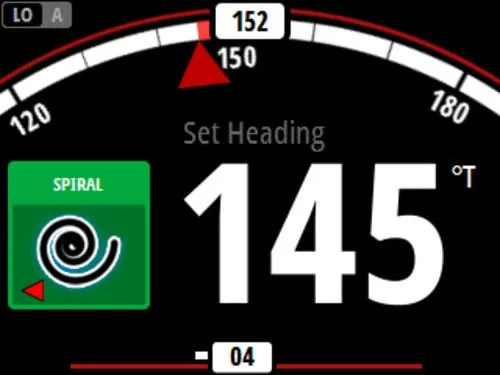

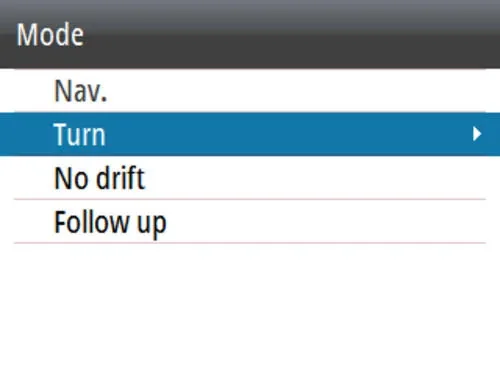

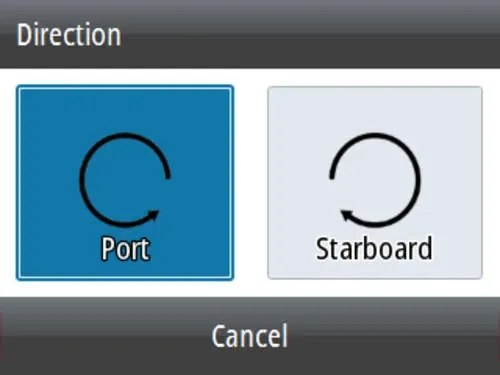

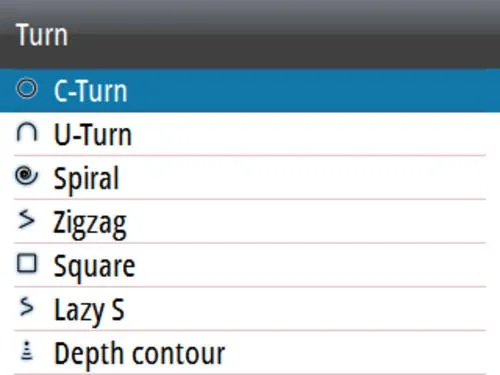

Your Simrad autopilot can do much more than keep you on course. The AP44 gives you easy access to a range of built-in turn patterns designed to assist with fishing, diving, or just making a quick and efficient U-turn. Choose a turn, select port or starboard, and you’re away. For more control, customise your turn pattern to execute complex spirals, zigzags, and other useful manoeuvres.

No Drift Steering

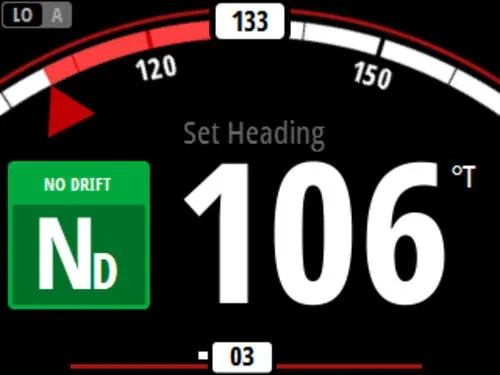

No Drift mode integrates GPS navigation with auto-steering, using your position to counteract the effects of wind and tide. This lets you maintain a straight track over ground on your current heading, without having to manually set a waypoint or route. To unlock this powerful feature, simply combine your AP44 autopilot system with an NMEA 2000® connected GPS receiver or compatible Simrad chartplotter.

Depth Contour Tracking

Network your AP44 autopilot system with a compatible echosounder module to enable depth contour tracking. In this mode, the AP44 will auto-steer to maintain a constant depth of water beneath your boat – perfect for following depth contours while fishing or cruising, without having to define complex multi-waypoint routes.

Simrad Precision-9 Compass

The Precision-9 Compass supplies accurate heading and rate-of-turn information to your autopilot and other onboard systems over an NMEA 2000® connection. Heading is determined by an internal array of solid-state sensors that constantly measure motion and orientation on nine axes. The Precision-9’s solid state technology is not only accurate and precise, but also exremely reliable with no internal moving parts. An easily adjustable mounting bracket and single-cable connection allow simple installation aboard any vessel, including up-mast mounting suitable for interference-free operation with steel hulls.
