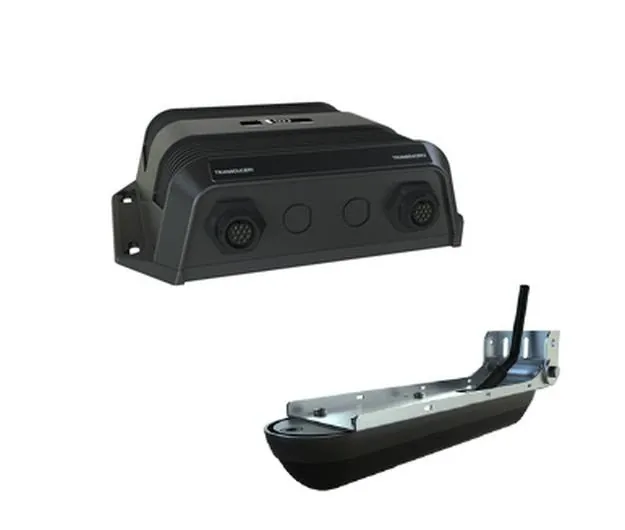

Simrad StructureScan 3D including module and transom-mount skimmer transducer

The new innovation from Simrad. StructureScan® 3D offers a simple new and easy way to view and read StructureScan® High Definintion Imaging data. Easy operation and amazing results.

StructureScan® 3D allows anglers to see fish, structure and bottom contour in a stunning three-dimensional view. StructureScan® 3D imaging scans underwater terrain and fish-holding structure to create a high-resolution, 180-degree, three-dimensional view underneath your boat. With this unique, exceptional imaging view, anglers gain a better appreciation of where fish and structure are located in relation to their vessel.

Interpret The Bottom Line

• Eradicate confusion when fish are not on the banks and in shallow, visible cover. For the first time, StructureScan® 3D allows fisherman to effortlessly see all subsurface fish-holding structure and the fish as if they were fishing underwater. Now, a simple slow idle over a prospective fishing ground allows you to quickly master bottom contours, identify a vertical break or secondary point, and catch more fish in and close to the main deep water channel.

Easier Visualization

• 3D visualizations can be seen from any angle with ScanTrack™ pan-tilt-rotate control using on-screen touch motions and easy-to-use, customised, personalised, and preset viewing positions.

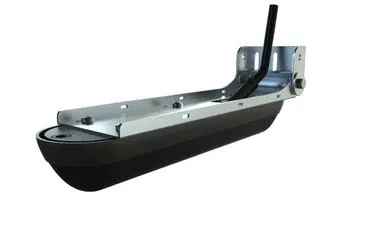

	000-12396-001	Structurescan 3D Xdcr

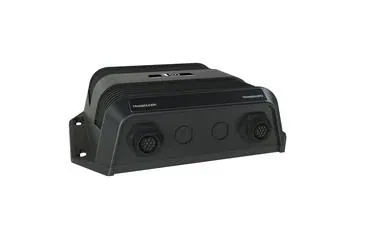

	000-12397-001	Structurescan 3D Module

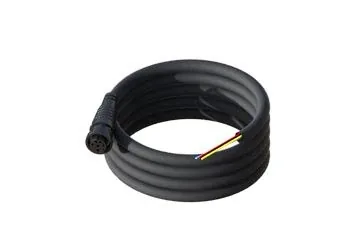

	000-00128-001	Power Cable Power Cable:(4 Pin conn. to 4 bare wires for Power in, Power control bus and external alarm) 2 m (6.5 ft)
	000-0127-29	Eth Cab 4.5m (15ft) Ethernet cable yellow 5 Pin 4.5 m (15 ft)

Technical/Environmental

Product Width	180 mm / 7.1 in
Product Height	57 mm / 2.2 in
Product Weight	0.9 kg / 2 lbs
Operating Temperature	-28° to 75° C (-20° to 167° F)
Water Resistance	1PX-7
Power Supply (Supply Voltage)	12 or 24 V DC(max range 9 V to 32 V DC)

StructureScan

Output Power	500w RMS
Max Side Range	300ft each side
Max Down Range	300 ft
Frequency	455 & 800kHz

CHIRP and Single Frequency Sonar

Output Power	250w RMS
Max Depth	3,500 ft- Transdcuer Dependent
CHIRP Frequency	40-60kHz, 85-145kHz, 130-210kHz
Narrow Band Frequency	50 kHz/83kHz/200kHz

Six Cable Connections

Ethernet	3 ports
Power	4 Pin power connector
