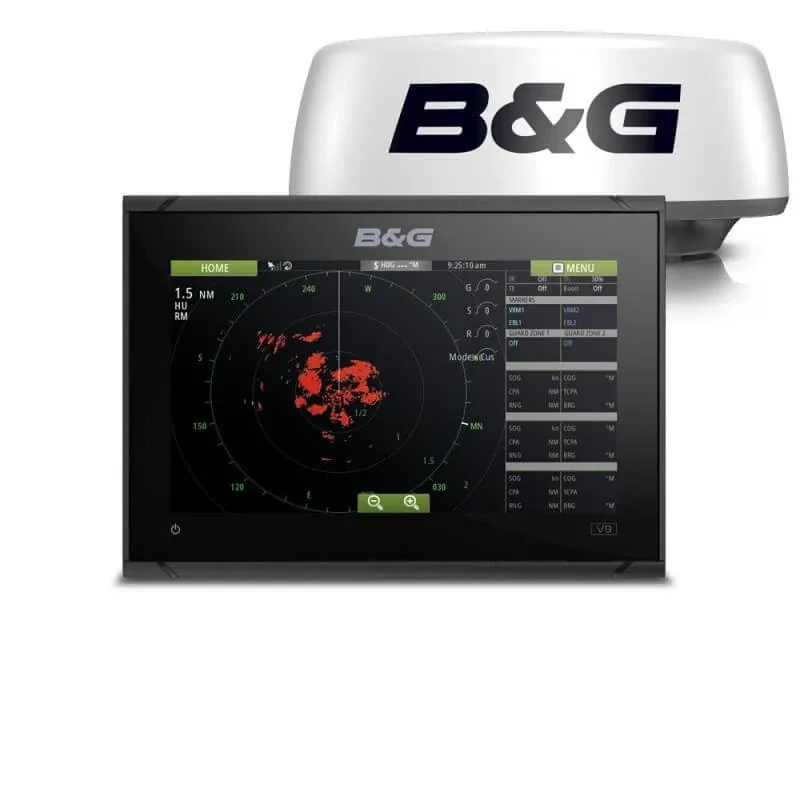

B&G Vulcan 9 Chartplotter with HALO20 Radar

Key Features

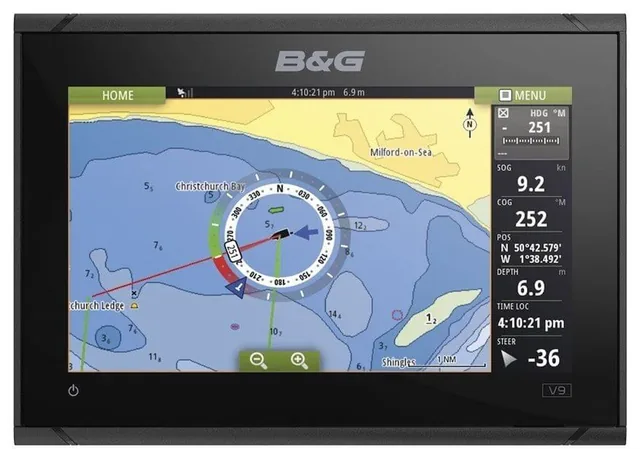

• 9" multi-touch sunlight-readable Vulcan display
• SailSteer, SailingTime, RacePanel and Laylines sailing tools

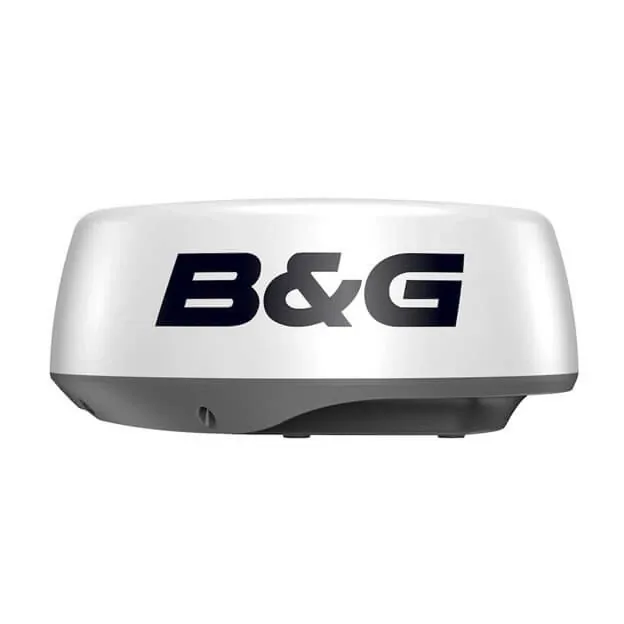

• HALO20 pulse compression radar with fast-acquisition sweep
• Bird mode for locating feeding birds and bait schools
• Dual range radar display for simultaneous short and long range views
• Integrated CHIRP sonar, DownScan and ForwardScan ready (transducer required, sold separately)
• Built-in Wi-Fi and NMEA 2000 connectivity
• Supports Navionics, C-MAP, Insight and NV Digital charts

• Genuine B&G warranty support

Who This Suits

This package suits sailors and cruisers who want radar-assisted collision avoidance and weather awareness alongside B&G's sailing-specific chartplotter tools, without needing to source and match a separate radar and display individually.

Specifications

Display Size	9 inches
Display Resolution	800 x 480 px
Screen Brightness	1200 nits
Display Dimensions	243 x 171 x 83mm (9.56 x 6.71 x 3.26 in)
Display Weight	1.32 kg (2.9 lb)
Radar Type	HALO20 pulse compression radome
Radar Features	Fast-acquisition sweep, dual range, bird mode
Power Supply	12V DC (10-17V)
Waterproof Rating	IPX6 & IPX7 (display)
Operating Temperature	-15C to +55C
Connectivity	NMEA 2000, Wi-Fi
Sonar	CHIRP, DownScan, ForwardScan ready (transducer sold separately)
Cartography	Navionics, C-MAP, Insight, NV Digital
Waypoints / Routes / Tracks	6000 / 500 / 50
Warranty	2 years

FAQs

This package includes the HALO20 radar dome. Larger HALO models are also available - ask us if you need extended range.

Yes, the Vulcan 9 provides B&G's sailing-specific tools like SailSteer and Laylines, while the HALO20 radar adds collision avoidance and weather awareness.

The Vulcan range is available in 7" and 9" displays. Radar bundles are available on request for either size.

Both the Vulcan 9 display and HALO20 radar carry a 2 year manufacturer warranty.
