B&G Zeus³S Glass Helm 24" Chartplotter (Display Only)

B&G Zeus³S Glass Helm 24" Chartplotter

The B&G Zeus³S Glass Helm 24" is the flagship of B&G's integrated glass bridge range, built for blue water cruisers, multihulls and superyachts that want a true glass helm navigation system rather than a standalone chartplotter. A new iMX8 six-core processor delivers twice the response speed of the previous generation, driving a 24" Full HD (1920x1080) widescreen display at 1200 nits with 80°/80° viewing angles, so the screen stays clear from any position at the helm, even through polarised sunglasses.

What's In The Box

• B&G Zeus³S Glass Helm 24" Display (integrated processor)
• NMEA 2000 Micro-C Low Loss 4 Way Joiner
• N2K-PWR-RD Network Power Node
• TR-120-KIT Network Terminator Kit
• NMEA 2000 6ft Network Extension Cable
• RJ45 Ethernet Adapter Cable
• MO16/19/24 Cable Retention Bracket
• Rear mount bracket kit for MO16/19/24 monitors
• MO24 Bezels
• B&G Zeus³ Glass Helm 24" Monitor Sun Cover

Why the Glass Helm 24" Earns Its Spot at the Helm

• iMX8 six-core processor - twice the response speed of the previous Glass Helm generation
• 24" Full HD widescreen display, 1200 nits, 80°/80° viewing angles, readable with polarised sunglasses

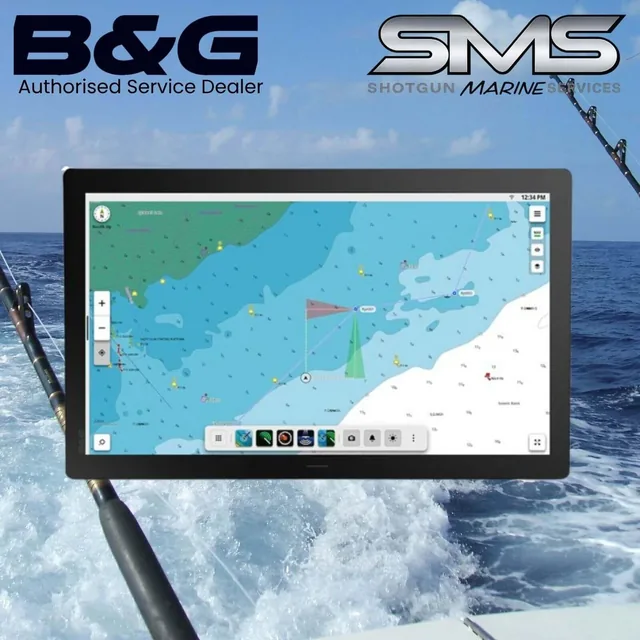

• Up to 6-way split screen for charts, radar, sonar and autopilot at once

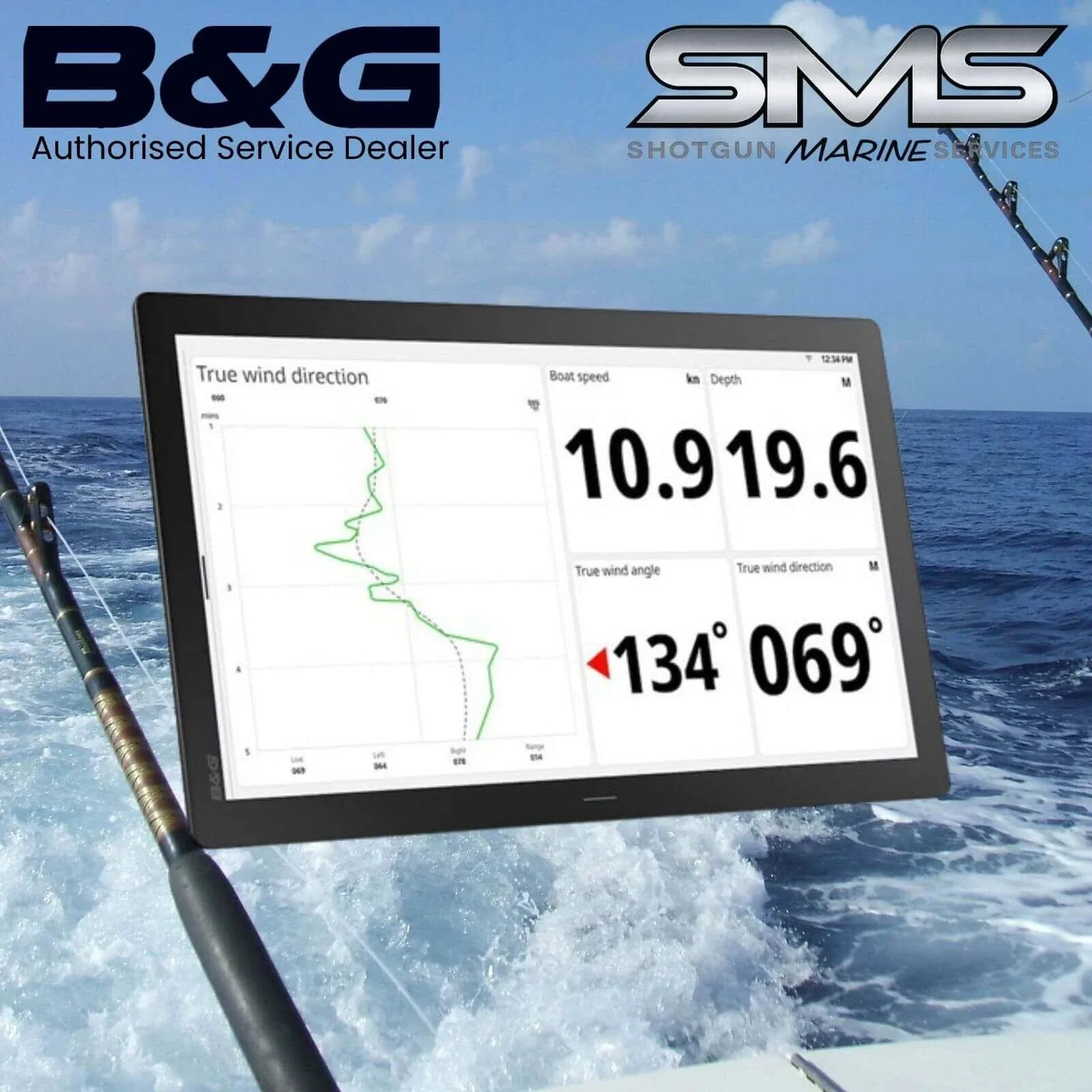

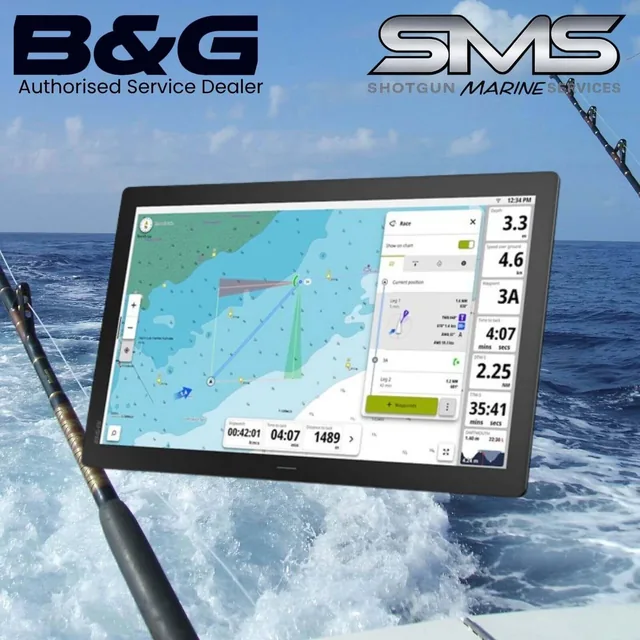

• Full B&G sailing suite: SailSteer, RacePanel, LayLines, SailingTime and PredictWind

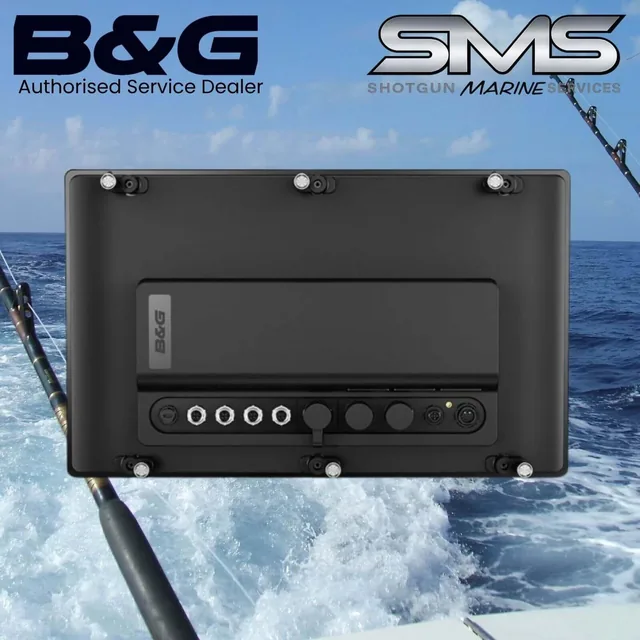

• Built-in Wi-Fi and Bluetooth, 5x Ethernet ports, HDMI and video inputs
• Connects to Halo Radar, autopilot, ForwardScan, NMEA 2000 and NMEA 0183 networks
• IPX6 rated on the front when panel mounted correctly
• World basemap included, C-MAP and Navionics cartography available separately
• 2 year manufacturer warranty

• Local, experienced advice on glass helm system design and layout

Who This Suits

Owners of blue water cruising yachts, multihulls and superyachts who want a fully integrated glass bridge system built around B&G's sailing features, rather than a single standalone chartplotter. If you're after a simpler 9" or 12" chartplotter for a smaller cruiser, see the B&G Zeus S range instead.

FAQs

Does this display come with charts included?
Yes, a world basemap is included. C-MAP and Navionics cartography for your cruising area is available separately.

Can I run radar and autopilot through this display?
Yes, it connects to B&G Halo Radar, autopilot and ForwardScan over NMEA 2000 and NMEA 0183, plus Ethernet for radar and sonar sharing.
