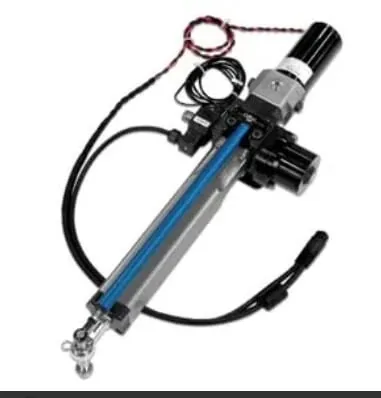

Save 9% Class B Compact Drive Unit Class B Compact Drive Unit for GHP 12
Garmin Marine

Class B Compact Drive Unit Class B Compact Drive Unit for GHP 12

PN
010-12029-00
SKU
DL-0336
UPC
753759108373
$2,486.36 $2,726.36

You save $240.00 (9%)

Out of stock — ask about lead time

Ask about availability

Nothing charged online — we email an invoice with shipping confirmed.

  • Manufacturer warranty
  • Tracked, insured shipping
  • Real help: (800) 000-0000

Overview

Class B Compact Drive Unit for GHP 12

The Garmin Class B Compact Drive Unit is compatible with the GHP™ 12 marine autopilot system to manage the steering of your sailboat. It is specifically created for sailboats that have a displacement of up to 48,400 lbs.

Specifications:

  • Drive Unit Type: Integrated Hydraulic linear
  • Stroke Length: 254 mm
  • Maximum Thrust: 730 kg
  • Dimensions, WxHxD (centered): 810 x 120 x 225 mm
  • Supply Voltage: 10V to 30V (regulated to 12V by the ECU)
  • Average Clutch Current at 12V: 1 Amp
  • Average Motor Current at 12V: 2-4 Amps
  • Operating Temperature: -15° C to 50° C

Specifications

Specifications

Drive Unit TypeIntegrated Hydraulic linear
Stroke Length254 mm
Maximum Thrust730 kg
Supply Voltage10V to 30V (regulated to 12V by the ECU)
Average Clutch Current at 12V1 Amp
Average Motor Current at 12V2-4 Amps
Operating Temperature-15° C to 50° C
