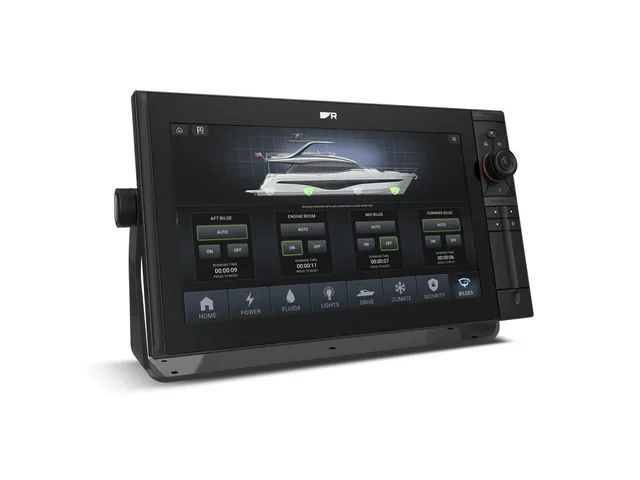

Raymarine AXIOM 2 PRO 16 S - MFD Hybridtouch

Raymarine AXIOM 2 Pro 12 S HybridTouch 16" Multi-function Show with integrated High CHIRP Conical Sonar for CPT-S

Axiom 2 Pro S

Sonar High CHIPR only, Compatible with Raymarine CPT transducers only. 9, 12, and 16 inch HybridTouch chartplotters with single channel CHIRP sonar.

Axiom 2 Pro RVM

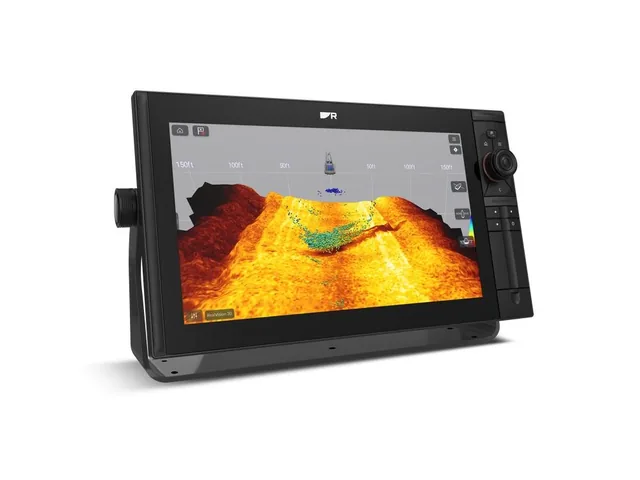

Sonar 1kw Airmar transducers, 3D compatible. 9, 12 and 16 inch HybridTouch chartplotters with RealVision 3D and 1kW CHIRP sonar technology

Axiom 2 Pro 16 S

Navigate with ease using the Raymarine AXIOM 2 PRO 16 S, including a HybridTouch MFD that allows you to plan your route with self-confidence. This cutting-edge tool uses 9, 12, and 16 inch chartplotters with solitary network CHIRP sonar, giving you with a full and exact photo of the waters ahead.

"Experience Optimal Performance with Axiom 2 Pro S: Your Overview to Product Customization"

The Axiom 2 Pro S is a trustworthy and versatile navigation system that incorporates chartplotter, sonar, radar, autopilot, and video capabilities. With its user-friendly LightHouse os, you can prepare your next cruise and browse with confidence making use of the HybridTouch ™ user interface, which combines a touchscreen and keypad. You can utilize the Axiom 2 Pro as a standalone GPS chartplotter or attach numerous Axiom displays with a RayNet cable for a networked arrangement. In addition to its chartplotter features, the Axiom Pro 2 S likewise includes a high CHIRP finder for exact depth soundings and underwater exploration.

Power That Pushes The Limits.

Get underway promptly with Axiom 2 Pro's effective 6-core processor. Chartplotter, radar, auto-pilot, and video are integrated seamlessly and quicker with the incredibly instinctive LightHouse os.

Axiom 2 Pro 9 featuring HydroTough

HydroTough ™ nano-coating modern technology in Axiom 2 Pro makes certain regular touchscreen responsiveness, striking shades, and optimum viewing in intense sunlight.

Smart backlighting and an ambient light sensor instantly adjust display screen brightness for day and evening lights conditions.

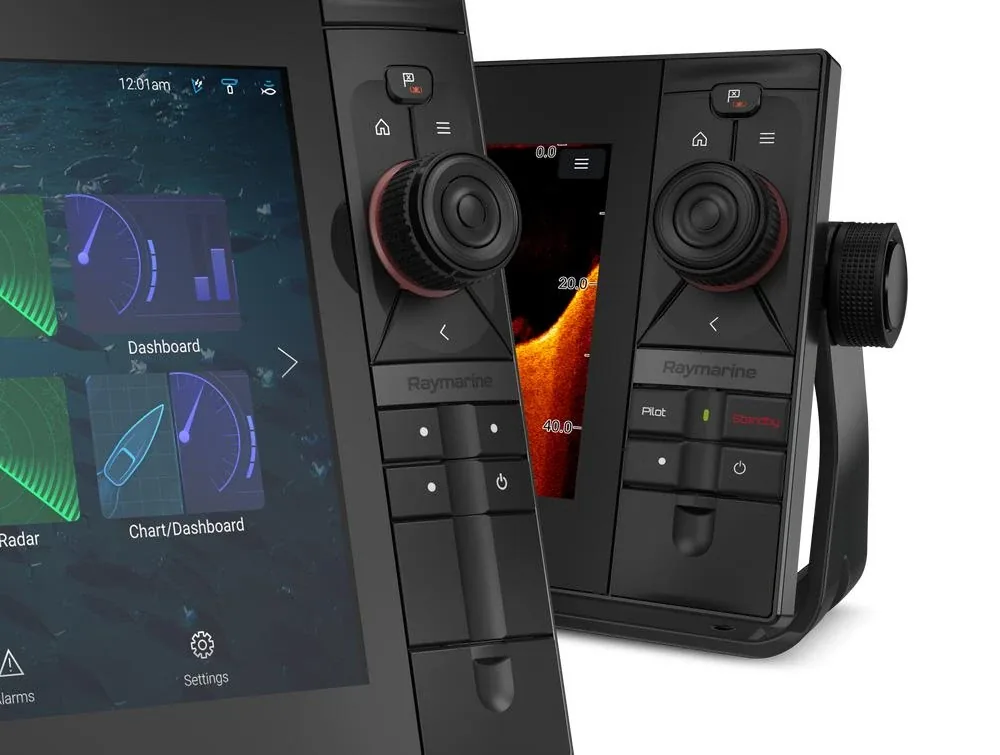

Positive Control.

Plan and story your training course with HybridTouch ™ control and take command with reliable keypad control when seas are harsh.

Individualize your Axiom 2 Pro by switching over out the keypads. Go with either a devoted Development auto-pilot keypad or user-customizable soft tricks.

Axiom 2 Pro Keypads supply a range of advanced devices for sailing lovers. These devices are created to enhance and boost your efficiency while sailing.

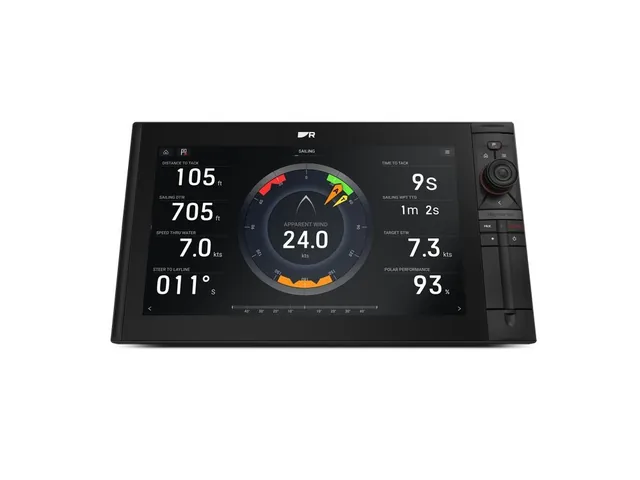

Axiom 2 Pro, furnished with Dynamic Laylines, uses an innovative sailing experience. With over 500 preloaded polar accounts for auto racing and cruising sailboats, you can easily access your watercraft's optimal performance information. Visualize real-time laylines on your graph, thinking about polars or taken care of angles, and contrast your progression against your watercraft's maximum capacity.

Axiom 2 Pro with Race Start Line.
Race Like a Pro.
Adjustable race timers, information dashboards, and a SmartStart ™ beginning line device help you anticipate and envision the beginning of your race. See line bias, time to burn in addition to the popular end. Cross the line on time, at optimal power.

Axiom 2 Pro with Cruising Control Panel.
Tactical Advantage.
Cruising and tactical-specific dial signs allow you see the instructions to guide at a glimpse to optimize your watercraft's Speed Made great (VMG) to windward. Cutting sails for maximum performance is now much easier than ever.

One Screen- Endless Opportunities.

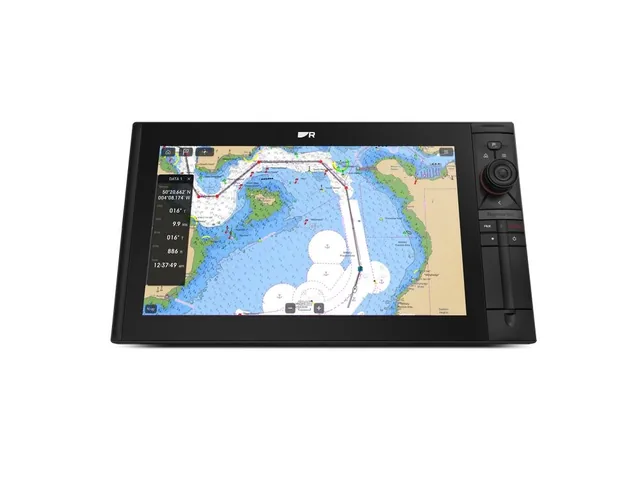

Axiom 2 Pro with LightHouse Charts.
Discover More.
Produced from official hydrographic chart resources, you can trust LightHouse Charts for maximum readability, intuitive navigating, and exceptional top quality.

Axiom 2 Pro with Doppler Radar.
Upgrade your Recognition.
Include a Quantum 2 radome or Cyclone open range radar and navigate more secure with Doppler target tracking and radar/chart overlay.

Axiom 2 Pro with FLIR Thermal.
Turn Evening Into Day.
FLIR thermal imaging and Axiom 2 Pro transform evening into day, maintaining you secure and protected so you can boat with confidence.

Axiom 2 Pro with ClearCruise Augmented Reality.
Make Wiser Decisions.
Add a CAM300 and an AR200 sensing unit for ClearCruise augmented reality. See AIS, waypoints, and graph items superimposed on high-def video clip.

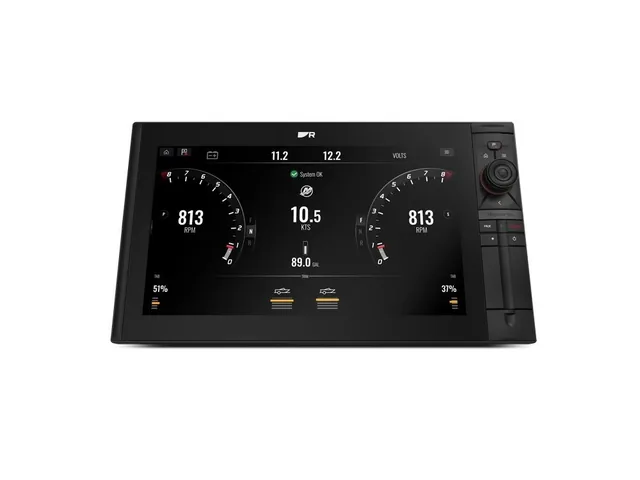

Axiom 2 Pro with Mercury VesselView.
Advanced Engine Integration.
Connect with NMEA2000-compatible engines or experience advanced assimilation with Mercury SmartCraft and Yamaha Command Web link engines.

Axiom 2 Pro with Sound controls.
Stream, Watch, and Pay attention.
Stream Netflix and Spotify, connect and control Fusion, JL Audio, and Rockford Fosgate marine stereo, or view Axiom 2 Pro on the cinema with HDMI outcome.

More Intelligent Boating.

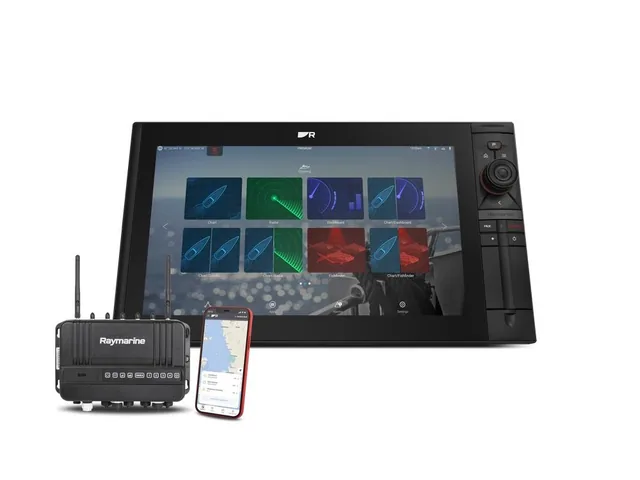

Axiom 2 Pro with YachtSense Link.
Keep Connected.
Add the YachtSense Link router and maintain your system connected onboard and off with the Raymarine mobile Application.

Axiom 2 Pro streaming to a smartphone.
Axiom on your Smartphone.
Integrated Wi-Fi allows you view and control your Axiom 2 Pro on your phone or tablet with the Raymarine Mobile Application.

Axiom Pro.

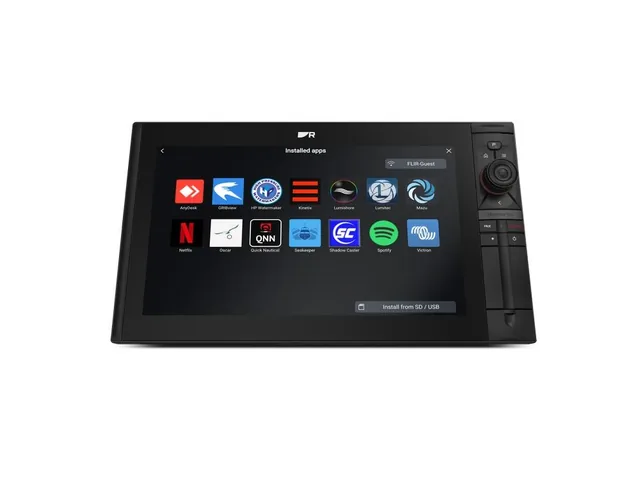

Do Much More with LightHouse Apps.
Broaden the capabilities of our Axiom 2 Pro with third-party apps from our aquatic technology partners.

DEVELOP An EFFECTIVE NAVIGATION SYSTEM.
Two RayNet Ethernet ports and NMEA2000 offer you the versatility to produce an Axiom 2 Pro system with multiple Axiom displays, fish finder modules, aquatic radar, auto-pilot, thermal, and camera.

PHYSICAL
Dimensions (Trunnion mounted)	Axiom 2 Pro 9: Height: 186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables): 234.9 mm (9.25 in) Axiom 2 Pro 12: Height: 246.13 mm (9.69 in), Width: 388.5 mm (15.3 in), Depth (including cables): 233.4 mm (9.18 in) Axiom 2 Pro 16: Height: 281.20 mm (11.10 in), Width 482.50 mm (19.00 in), Depth (including cables): 233.4 mm (9.18 in)
Dimensions (Surface/Flush mounted)	Axiom 2 Pro 9: Height: 173.79 mm (6.84 in), Width: 299.32 mm (11.78 in), Depth (including cables): 234.9 mm (9.25 in) Axiom 2 Pro 12: Height: 222.8 mm (8.77 in), Width: 358.03 mm (14.1 in), Depth (including cables): 233.4 mm (9.18 in) Axiom 2 Pro 16: Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth (including cables): 240.4 mm (9.46 in)

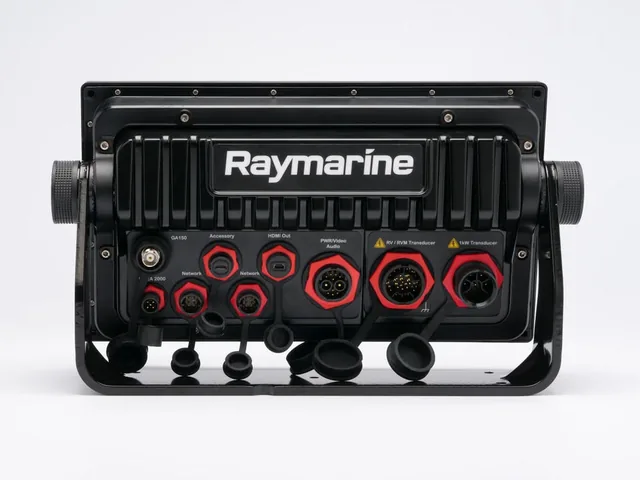

CONNECTIONS
Ethernet connection	2 RayNet (10/100/1,000 Mbits/s) ports
NMEA 2000 connection	DeviceNet connector
Wi-Fi	Multiband - 2.4GHz, and 5Ghz 802.11b/g/n
Bluetooth	v4.0
Accessory connection	USB Micro B
Internal storage	64GB Solid State
External storage	2 front mounted MicroSDXC card slots
Digital Video and Audio	HDMI Out Micro connector type D
Analog video connections	BNC Analog video input (on power cable)
Analog audio connections	RCA connectors via power cable
External GPS anternna	TNC connector

POWER
Power consumption @ 12 V dc	Axiom Pro 9: 33.12 W Axiom Pro 12: 29.88 W Axiom Pro 16: 42.36 W
Power consumption @ 24 V dc	Axiom Pro 9: 30.96 W Axiom Pro 12: 28.8 W Axiom Pro 16: 40.8 W
Operating voltage range	8 V dc to 32 V dc
Nominal supply voltage	12 V dc / 24 V dc
Off current @ 12 V dc	11 mA (0.13 W)
Off current @ 24 V dc	18 mA (0.43 W)
LEN (NMEA 2000 Load Equivalency Number)	1
Current	5 A
Fuse rating	15 A

GPS (GNSS)
Position Accuracy	Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
Geodetic Datum	WGS-84 (alternatives can be selected on the MFD)
Satellite Differential Type (SBAS)	WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
Channels	Track up to 28 satellites simultaneously
Antenna	Internal - Ceramic chip mounted near top of unit
GNSS compatibility	GPS, Galileo, GLONASS, Beidou
Almanac Update	Automatic
Signal Acquisition	Automatic
Receiver IC Sensitivity	165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
Operating frequency	1574 MHz to 1605 MHz
Refresh rate	10 Hz (10 times per second)
Time to first fix from cold start	< 2 minutes

ENVIRONMENTAL
Operating temperature	-25°C to +55°C (-13°F to 131°F)
Storage temperature	-30°C to +70°C (-22°F to 158°F)
Relative humidity	Up to 93% @ 40°C (104°F)
Waterproof rating	IPx6, IPx7

LCD
Size (diagonal)	Axiom 2 Pro 9: 9.0" Axiom 2 Pro 12: 12.1" Axiom 2 Pro 16: 15.6"
Ratio	Axiom 2 Pro 9: 16:9 Axiom 2 Pro 12: 16:9 Axiom 2 Pro 16: 16:10
Resolution	Axiom 2 Pro 9: 1280 x 720 HD Axiom 2 Pro 12: 1280 x 800 WXGA Axiom 2 Pro 16: 1920 x 1080 FHD
Viewing angle	Top 88° / Bottom 88° / Left 88° / Right 88°
Type	IPS (In-Plane Switching)
Color depth	24-bit
Illumination	Axiom 2 Pro 9 1300 nits / 1300 cd/m2 Axiom 2 Pro 12 1200 nits / 1200 cd/m2 Axiom 2 Pro 16 1200 nits / 1200 cd/m2
Number of simultaneous touches	1 to 16

SONAR
Channels	CHIRP conical sonar
Depth range	0.6 m (2 ft) to 274 m (900 ft) Depending on water conditions
Transducer connection	25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers
