Raymarine AXIOM 2 PRO 9 S - MFD Hybridtouch

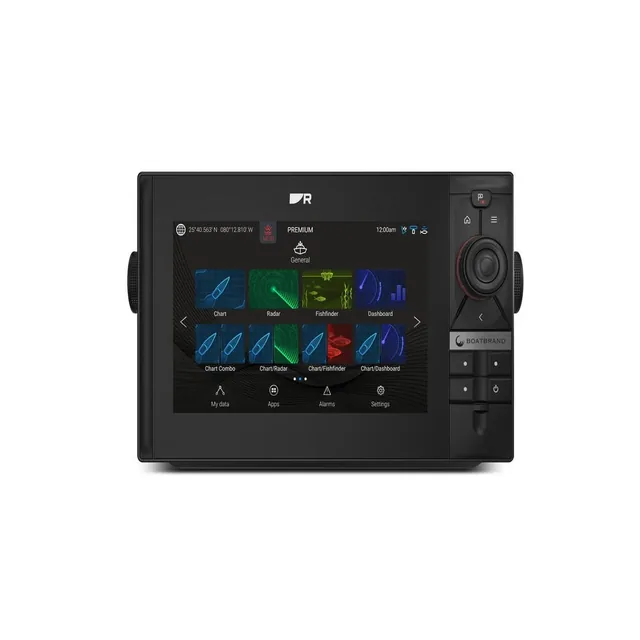

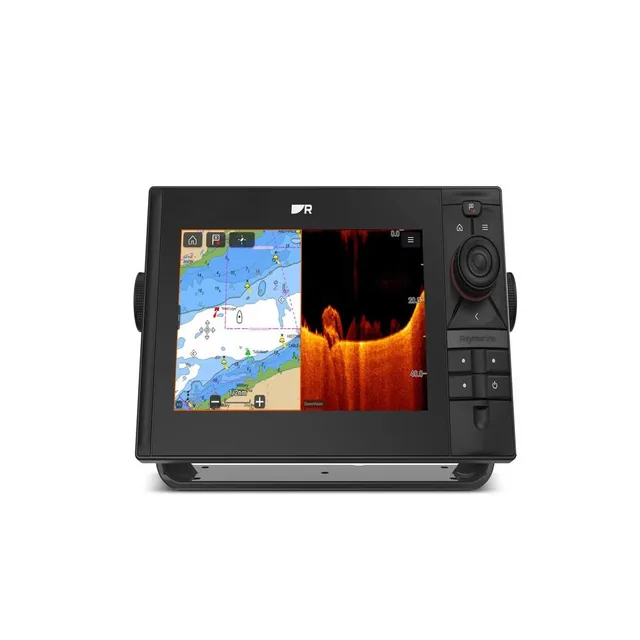

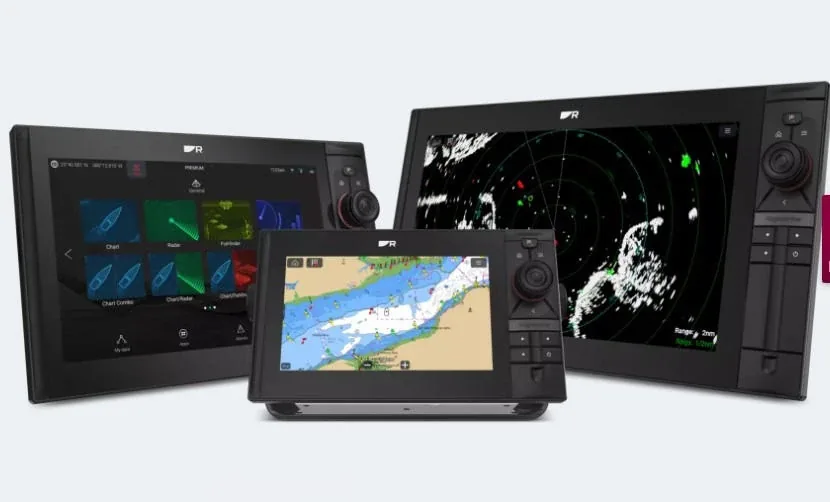

Raymarine AXIOM 2 Pro 9 S HybridTouch 9" Multi-function Show with integrated High CHIRP Conical Sonar for CPT-S

Axiom 2 Pro S

Sonar High CHIPR only, Compatible with Raymarine CPT transducers only.

Axiom 2 Pro RVM

Sonar 1kw Airmar transducers, 3D compatible

Axiom 2 Pro S 9

State of the art all in one MFD incorporating chartplotter, sonar, radar, auto-pilot, and video into the navigation system.

Plan your route confidently with Axiom 2 Pro's HybridTouch - an easy touchscreen and keypad experience made possible by the intuitive LightHouse os.

Axiom 2 Pro S is an innovative navigating system that effortlessly integrates chartplotter, sonar, radar, autopilot, and video clip capacities right into a single, user-friendly gadget. With HybridTouch ™ innovation, you can quickly navigate and control your vessel utilizing either the touchscreen or keypad, thanks to the intuitive LightHouse os. Whether you're preparing a solo cruise ship or a network of numerous Axiom display screens, Axiom 2 Pro S uses the adaptability to match your needs. Additionally, its high CHIRP sonar abilities supply dependable depth soundings and underwater exploration, making it an essential tool for any type of seafarer.

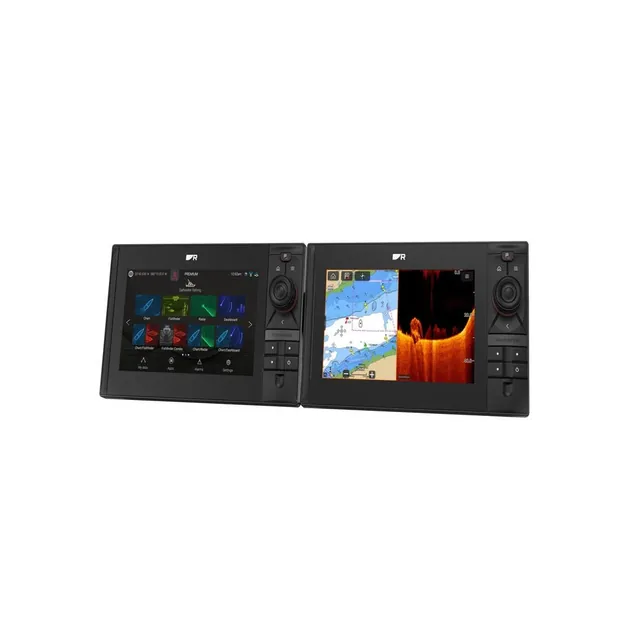

Experience the adaptability of the Axiom 2 Pro as a standalone GPS chartplotter or connect numerous displays along with a streamlined RayNet cable television link. Appreciate the advantages of a detailed navigation system that consists of an integrated high CHIRP finder, offering exact deepness readings and boosting your underwater exploration experiences.

The tool has an HDMI result that enables you to link to remote monitors or HDTVs. It also has an analog audio output that can be integrated with marine home entertainment systems. It is very easy to update as it has the exact same installing impact as Axiom Pro and eS Collection presents. The built-in ambient light sensor and smart backlighting automatically change the backlighting based on the lighting conditions. There are two RayNet Ethernet ports for networking several Axiom display screens, radar, cameras, and finder modules. It additionally has an NMEA 2000 port with a SeatalkNG adapter cable television. The device has an integrated high-accuracy GPS/GNSS sensing unit that sustains the Galileo GNSS constellation. It has 64 GB of inner memory for storing applications, graphes, and waypoints. The 9" and 12" designs come with both flush mount and trunnion place sets, while the 16" design includes a flush-mount kit. There is an optional sturdy stainless-steel trunnion place set available for the 16" version. There are different alternatives to pick from.

PHYSICAL
Dimensions (Trunnion mounted)	Axiom 2 Pro 9: Height: 186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables): 234.9 mm (9.25 in) Axiom 2 Pro 12: Height: 246.13 mm (9.69 in), Width: 388.5 mm (15.3 in), Depth (including cables): 233.4 mm (9.18 in) Axiom 2 Pro 16: Height: 281.20 mm (11.10 in), Width 482.50 mm (19.00 in), Depth (including cables): 233.4 mm (9.18 in)
Dimensions (Surface/Flush mounted)	Axiom 2 Pro 9: Height: 173.79 mm (6.84 in), Width: 299.32 mm (11.78 in), Depth (including cables): 234.9 mm (9.25 in) Axiom 2 Pro 12: Height: 222.8 mm (8.77 in), Width: 358.03 mm (14.1 in), Depth (including cables): 233.4 mm (9.18 in) Axiom 2 Pro 16: Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth (including cables): 240.4 mm (9.46 in)

CONNECTIONS
Ethernet connection	2 RayNet (10/100/1,000 Mbits/s) ports
NMEA 2000 connection	DeviceNet connector
Wi-Fi	Multiband - 2.4GHz, and 5Ghz 802.11b/g/n
Bluetooth	v4.0
Accessory connection	USB Micro B
Internal storage	64GB Solid State
External storage	2 front mounted MicroSDXC card slots
Digital Video and Audio	HDMI Out Micro connector type D
Analog video connections	BNC Analog video input (on power cable)
Analog audio connections	RCA connectors via power cable
External GPS anternna	TNC connector

POWER
Power consumption @ 12 V dc	Axiom Pro 9: 33.12 W Axiom Pro 12: 29.88 W Axiom Pro 16: 42.36 W
Power consumption @ 24 V dc	Axiom Pro 9: 30.96 W Axiom Pro 12: 28.8 W Axiom Pro 16: 40.8 W
Operating voltage range	8 V dc to 32 V dc
Nominal supply voltage	12 V dc / 24 V dc
Off current @ 12 V dc	11 mA (0.13 W)
Off current @ 24 V dc	18 mA (0.43 W)
LEN (NMEA 2000 Load Equivalency Number)	1
Current	5 A
Fuse rating	15 A

GPS (GNSS)
Position Accuracy	Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
Geodetic Datum	WGS-84 (alternatives can be selected on the MFD)
Satellite Differential Type (SBAS)	WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
Channels	Track up to 28 satellites simultaneously
Antenna	Internal - Ceramic chip mounted near top of unit
GNSS compatibility	GPS, Galileo, GLONASS, Beidou
Almanac Update	Automatic
Signal Acquisition	Automatic
Receiver IC Sensitivity	165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
Operating frequency	1574 MHz to 1605 MHz
Refresh rate	10 Hz (10 times per second)
Time to first fix from cold start	< 2 minutes

ENVIRONMENTAL
Operating temperature	-25°C to +55°C (-13°F to 131°F)
Storage temperature	-30°C to +70°C (-22°F to 158°F)
Relative humidity	Up to 93% @ 40°C (104°F)
Waterproof rating	IPx6, IPx7

LCD
Size (diagonal)	Axiom 2 Pro 9: 9.0" Axiom 2 Pro 12: 12.1" Axiom 2 Pro 16: 15.6"
Ratio	Axiom 2 Pro 9: 16:9 Axiom 2 Pro 12: 16:9 Axiom 2 Pro 16: 16:10
Resolution	Axiom 2 Pro 9: 1280 x 720 HD Axiom 2 Pro 12: 1280 x 800 WXGA Axiom 2 Pro 16: 1920 x 1080 FHD
Viewing angle	Top 88° / Bottom 88° / Left 88° / Right 88°
Type	IPS (In-Plane Switching)
Color depth	24-bit
Illumination	Axiom 2 Pro 9 1300 nits / 1300 cd/m2 Axiom 2 Pro 12 1200 nits / 1200 cd/m2 Axiom 2 Pro 16 1200 nits / 1200 cd/m2
Number of simultaneous touches	1 to 16

SONAR
Channels	CHIRP conical sonar
Depth range	0.6 m (2 ft) to 274 m (900 ft) Depending on water conditions
Transducer connection	25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers
