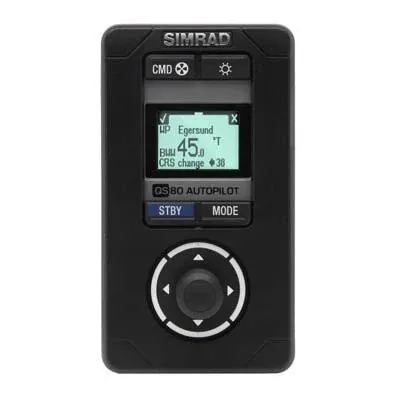

Simrad QS80 Quick Stick Lever

Part # 000-10184-001 Price 1020.00 AUD

The QS80 (Quick Stick™ controller) operates the same way as NF80 when the joystick is kept to port or starboard. When the joystick is moved forward and released, the autopilot goes into automatic mode. When the joystick is moved backwards when automatic steering is active, the autopilot goes to standby. If the joystick is moved backwards when standby, the rudder moves to mid-position. The joystick has spring return to centre position. QS80 Quickstick remote unit with display, 6m factory mounted drop cable, T-connector, front bezel, installation and user manual, gasket for panel mounting, mounting screws. Take command and Mode buttons. Provides course change in Auto mode.

Key Features

• 35mm x 25mm display
• Type approved
• Two mounting options –desktop and panel (flush)
• Network based with NMEA2000 cabling
• Backward compatible with AP24, AP28, NSE, NSO
