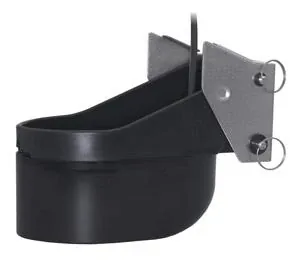

Simrad TM265LH Transom-mounted 42-65 kHz/130-210 kHz Dual Channel CHIRP transducer

Rely on Airmar's new broadband transducers for the ultimate fishing mission! Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town. Traditional marine fish finders operate at discreet frequencies such as 50 kHz and 200 kHz, use relatively short-duration pulses, and use narrowband sonar transducers. In contrast, Chirp uses a precise sweep pattern of many frequencies within a long-duration transmit pulse from a broadband transducer, so the equivalent sound energy transmitted into the water is 10 to 1,000 times greater than a conventional marine fish finder.

Specifically designed for small boats (25'-40'), the TM265LH Chirps across the following bandwidths:

LH Model - Low Frequency 42-65 kHz/High Frequency 130-210 kHz

Read the product brochure

• Features
• Specifications
• Technical Data
• Owner's Guide
• Dimensional Drawing

Features

• 8 Internal Broadband Ceramics
• Depth & fast response water temperature sensor
• Low frequency: 42-65 kHz
• High frequency: 130-210 kHz
• Urethane housing and stainless steel mounting bracket
• Boat Size: 8 m to 12 m (25’ to 40’)
• Boat type: Outboards, I/O
• Hull type: Fiberglass, Wood, Metal
• Can retrofit to existing TM258 & TM260 bracket
