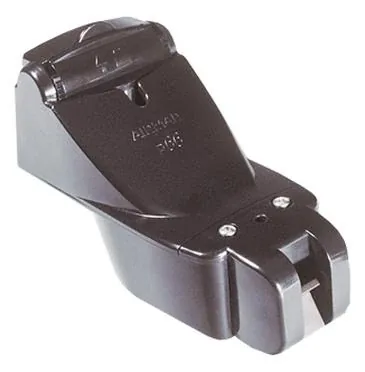

Simrad xSonic Airmar P66 Plastic transom mount transducer 50/200kHz Depth/Temp Only
Simrad

Simrad xSonic Airmar P66 Plastic transom mount transducer 50/200kHz Depth/Temp Only

PN
000-11062-001
SKU
DL-0110
UPC
9420024162743
Transom50/200 kHz
$263.64

In stock

Nothing charged online — we email an invoice with shipping confirmed.

Will it work with your display?

Add your display model in the order notes or ask us first. We confirm connector and sonar compatibility before we invoice.

  • Manufacturer warranty
  • Tracked, insured shipping
  • Real help: (800) 000-0000

Overview

Airmar® P66 Transom Mount Transducer

The P66 multisensor features a 50/200 kHz,Depth / Temp Only dual-frequency, single-ceramic element. This hydrodynamic housing with a rounded nose reduces the turbulence under the transducer’s face for accurate high-speed readings and clear display images.

Transducer Specifications

Frequency 50/200 kHz
Power Rating 600W
Speed Sensor No
Temperature Sensor Yes
Mounting Style Transom Mount
Elements 1
Beamwidth @ -3dB 45 (50 kHz) 11 (20 kHz)

Specifications

Details

Frequency50/200 kHz
Power Rating600W
Speed SensorNo
Temperature SensorYes
Mounting StyleTransom Mount
Elements1
Beamwidth @ -3dB45 (50 kHz) 11 (20 kHz)

Transducer

MountTransom
