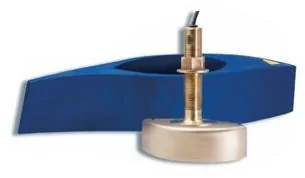

Simrad xSonic Airmar B258 Depth/Temperature Transducer
Simrad

Simrad xSonic Airmar B258 Depth/Temperature Transducer

PN
000-0136-00
SKU
DL-0119
UPC
9420024165102
$1,136.36

Out of stock — ask about lead time

Ask about availability

Nothing charged online — we email an invoice with shipping confirmed.

Will it work with your display?

Add your display model in the order notes or ask us first. We confirm connector and sonar compatibility before we invoice.

  • Manufacturer warranty
  • Tracked, insured shipping
  • Real help: (800) 000-0000

Overview

B258 Bronze 1 kW Thru Hull 50/200 Khz Depth/Temp w/HS Fairing Block - blue 7 pin connector. - Beamwidth: 50 kHz—15° x 21°, 200 kHz—3° x 5°. - Four Elements. - Q at 50 kHz—9, Q at 200 kHz—15

B258 Depth/Temperature Transducer

High Performance

  • The 1kW transducer is perfect for fast, sportfishing vessels that can install a thru-hull transducer with a fairing.

Deep Water Fishing

  • Excellent for deep water bottom and structure fishing up to 500m/1640ft.

Depth/Temperature

  • Calculate depth and temperature from one compact sensor.

Wide Operating Range

  • From 1 knot to 45 knots.

Highly Accurate Sounding

  • Provides extremely accurate echosounding data, even at speeds of over 30 knots.

Dual Frequency

  • Works at 50 kHz and 200 kHz for good target detail in shallow water and excellent bottom tracking in deep water.

Bronze

  • Built to withstand the environment.
