Furuno FCV-295 10.4" Colour LCD Fish Finder / Sounder

New digital fish finder delivers crystal clear image of fish targets and bottom structure

You can display echoes in 8, 16, or 64 colors, with color assignment dependent on the strength of the returned echo. The FURUNO Free Synthesizer (FFS) Transceiver allows a wide selection of operating frequencies. You may choose any two frequencies between 28 and 200 kHz to fit your fishing operation. Output power is selectable from 1, 2 or 3 kW. A wide variety of display modes and functions are available, which provide skippers with simple and intuitive information.

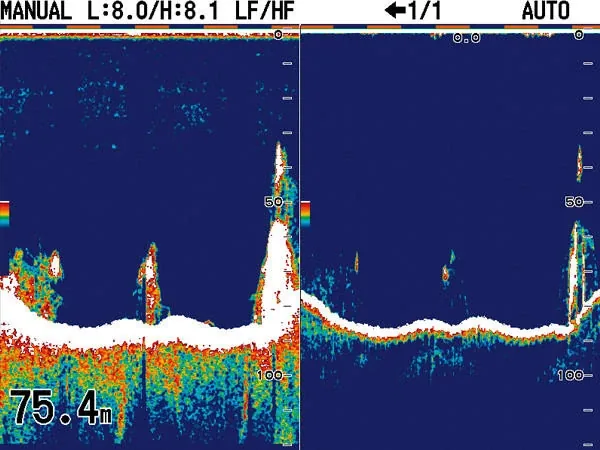

FURUNO Digital Filter
FURUNO digital filter optimizes the gain to obtain highly defined images of underwater conditions. The FCV-295 for sale can clearly show target fish close to the seabed. The digital filter also eliminates noise to deliver sharp and detailed echo presentation, achieving detection of fishing reef and even individual fish with absolute clarity.

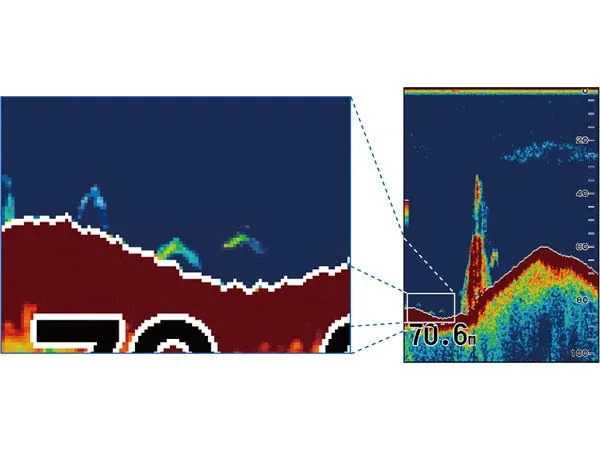

White Edge
The top of the seabed is displayed in white to easily discern seabed structure from bottom fish returns. While conventional bottom discrimination function called "White Line" applies also to the strongest echoes, the White Edge function enhances the discrimination of bottom fish and seabed by painting a very thin line above the bottom contour regardless of gain setting or display colour.

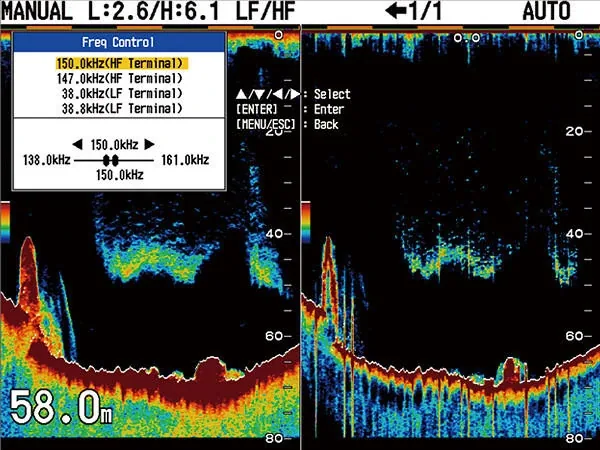

Operating Frequency Adjustment
When FURUNO transducers are connected and set to the FCV-295, the operating frequency range will be registered and shown in the menu. The user can shift the operating frequency freely between the ranges at any time from the menu. With the FURUNO 82B-35R transducer, the operator can select any operating frequency from 66 to 109 kHz. This feature is particularly useful for vessels targeting many different species, or when the fish finders of other ships in the area cause interference.

Faster Transmission Rate For Detailed Detection
The rate of transmission is increased by more than 30% compared to conventional fish finders. As the result, more detailed information about underwater conditions can be gained through the same sounding interval. With the FCV-295' s AUTO transmission function, the rate is automatically raised in shallow waters and lowered in deep waters, which provides for detailed detection of seabed targets.

Function Key
An often-used function such as TVG (Time Varied Gain) can be programmed and made available with the press of the Function key. This will give you access to any menu item without opening the menu. Functions which can be registered: Pic. Advance / Interference / Color Erase / Clutter / White Line / White Marker / TVG / STC / Bottom Zone / A-Scope / Split Range / Auto Shift / Freq Choice / Freq Control.

Quick Gain Control
With the FCV-295's Quick Gain control, changes in the Gain setting are applied to not only to new echoes, but to all past echoes on the screen. You can compare the past and current echoes under same gain setting. Because the changes are applied to both new and existing returns, you will be able to quickly and easily find the right Gain setting for your conditions.

New digital fish finder delivers crystal clear image of fish targets and bottom structure

The FCV-295 is a color digital sounder designed for a variety of professional fishing operations. It features a bonded 10.4 LCD display providing superior viewing even in direct sunlight. You can display echoes in 8, 16, or 64 colors, with color assignment dependent on the strength of the returned echo.

Features

• 10.4"bonded color LCD provides clear view in any weather conditions Fogging Free display gives superior viewing.
• Furuno FCV 295 the superior quality high performance commercial fishfinder digital colour sounder for effortless performance in offshore waters.
• Post-processing gain control applies to all existing returns on the display
• White Edge function trace the bottom contour with a thin white line
• FURUNO Digital Filter delivers crystal clear target presentation
• FURUNO Free Synthesizer transceiver (FFS) allows adjustable operating frequency with wide range of operation frequencies. You can select 2 frequencies between 28 and 200 kHz.
• Austrailian warranty applies.

TRANSDUCERS

Model / Part #
St-01Ptb	Plastic Transom Clip-On Speed and Temp Sensor (6-Pin) with Bracket
St-02Msb	Bronze Thru-Hull Speed and Temp Sensor (6-Pin)
St-02Psb	Plastic Thru-Hull Speed and Temp Insert (6-Pin)
Cat2000/Th	Bronze Thru-Hull Temp Sensor, Type T-02MSB (6-Pin)
CA28F-8	Rubber Coated Transducer, Type 28F-8, 1kW (No Plug)
CA28F-18	Rubber Coated Transducer, Type 28F-18, 2kW (No Plug)
Ca28Bl-6Hr	FRP Transducer (BLT), Type 28BL-6HR, 2kW (No Plug)
Ca28F-24H	Go To CA28BL-12HR - Rubber Coated Transducer, Type 28F-24H, 3kW (No Plug)
Ca28Bl-12Hr	FRP Transducer (BLT), Type 28BL-12HR, 3kW (No Plug)
Ca28F-38M	Rubber Coated Transducer, Type 28F-38M, 5kW (No Plug)
CA28F-72	Rubber Coated Transducer, Type 28F-72, 10kW (No Plug)
Ca38Bl-9Hr	FRP Transducer (BLT), Type 38BL-9HR, 2kW (No Plug)
Ca38Bl-15Hr	FRP Transducer (BLT), Type 38BL-15HR, 3kW (No Plug)
Ca50B-6B	Rubber Coated Transducer, Type 50B-6B, 1kW, 15m Cable (No Plug)
Ca50B-6B/30	Rubber Coated Transducer, Type 50B-6B, 1kW, 30m Cable (No Plug)
Ca50B-6B/50	Rubber Coated Transducer, Type 50B-6B, 1kW, 50m Cable (No Plug)
Ca50B-6G	Rubber Coated Transducer, Type 50B-6G, 1kW (No Plug)
Ca50B-9B	Rubber Coated Transducer, Type 50B-9B, 1kW (No Plug)
Ca50Bl-24Hr	FRP Transducer (BLT), Type 50BL-24HR, 3kW (No Plug)
Ca50F-24H	Rubber Coated Transducer, Type 50F-24H, 3kW (No Plug)
Ca50Bl-12Hr	FRP Transducer (BLT), Type 50BL-12HR, 2kW (No Plug)
CA50F-38	Rubber Coated Transducer, Type 50F-38, 5kW (No Plug)
CA50F-70	Rubber Coated Transducer, Type 50F-70, 10kW (No Plug)
CA88B-8	Rubber Coated Transducer, Type 88B-8, 1kW (No Plug)
CA88B-10	Rubber Coated Transducer, Type 88B-10, 2kW (No Plug)
Ca88F-126H	Rubber Coated Transducer, Type 88F-126H, 5kW (No Plug)
Ca100B-10R	Rubber Coated Transducer, Type 100B-10R, 3kW (No Plug)
CA200B-5	Bronze Thru-Hull Transducer, Type 200B-5, 1kW (No Plug)
Ca200B-5S	Rubber Coated Transducer, Type 200B-5S, 1kW (No Plug)
Ca200B-8B	Rubber Coated Transducer, Type 200B-8B, 2kW, 15m Cable (No Plug)
Ca200B-8B/30	Rubber Coated Transducer, Type 200B-8B, 2KW, 30m Cable (No Plug)
Ca200B-8B/50	Xdcr 200B-8B W/50M Cbl 200Khz
Ca200B-82M	Bronze Thru-Hull Transducer, Type 200B-82M, 2kW (No Plug)
Ca200B-12H	Rubber Coated Transducer, Type 200B-12H, 5kW (No Plug)
CA50/200-1T	Rubber Coated Transducer, 1kW (No Plug)
CA50/200-12M	Bronze Thru-Hull Transducer, 1kW (No Plug)
526Tid-Hdn	Bronze Thru-Hull Transducer with Temp and Hi-Speed Fairing Block, 1kW (No Plug)
527Id-Ihn	Urethane In-Hull Transducer, 1kW, no plug
556Tid-Hwn	Stainless Steel Wide Beam Thru-Hull Transducer with Temp and Fairing Block, 1 kW (No Plug)
Ca50/200Tid-99	Urethane Thru-Hull Transducer with Temp, Fairing Block and Tube, 2kW (No Plug)
Ca50/200Id-199	Rubber-Coated In-Hull Transducer, 2kW (No Plug)
Ca82B-35R	FRP Tank-Mounted Transducer, 65kHz-110kHz, 2kW (No plug)
SS264W-50/12	Stainless Steel Wide-Beam Low Profile Transducer, 50kHz, 600W/1kW, 12° tilt
SS264W-50/20	Stainless Steel Wide-Beam Low Profile Transducer, 50kHz, 600W/1kW, 20° tilt
SS264W-200/12	Stainless Steel Wide-Beam Low Profile Transducer, 200kHz, 600W/1kW, 12° tilt
SS264W-200/20	Stainless Steel Wide-Beam Low Profile Transducer, 200kHz, 600W/1kW, 20° tilt
R209Tidn	Urethane Thru-Hull Transducer with Temp and High-Speed Fairing Block, 33-60kHz & 130-210kHz, 2/3 kW (No plug)
R299Id-Ihn	Urethane In-Hull Transducer, 33-60kHz & 130-210kHz, 2/3 kW (No plug)
R309Tidn	Urethane Thru-Hull Transducer with Temp and High-Speed Fairing Block, 24-45kHz & 130-210kHz, 2/3 kW (No Plug)
	Note: When using 5 or 10KW transducers (CA28F-38M, CA28F-72, CA50F-38, CA50F-70) it is highly recommended that the BT-5 be used. The BT-5 is an impendence matching box specially designed to be used with these higher power transducers.
