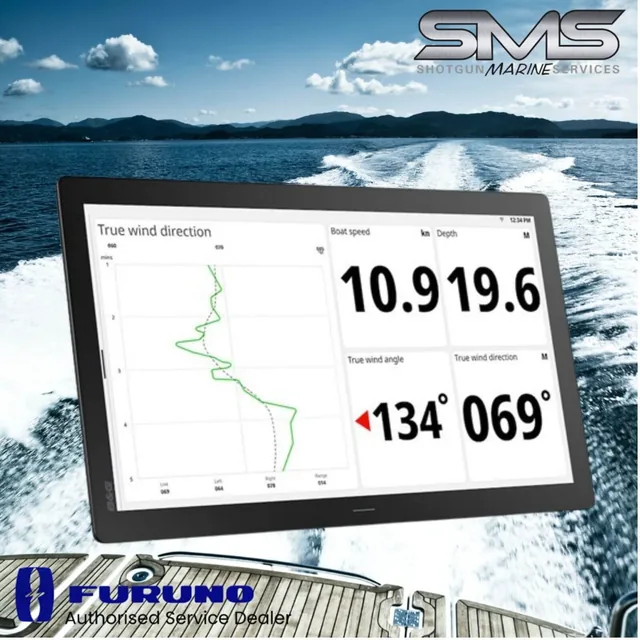

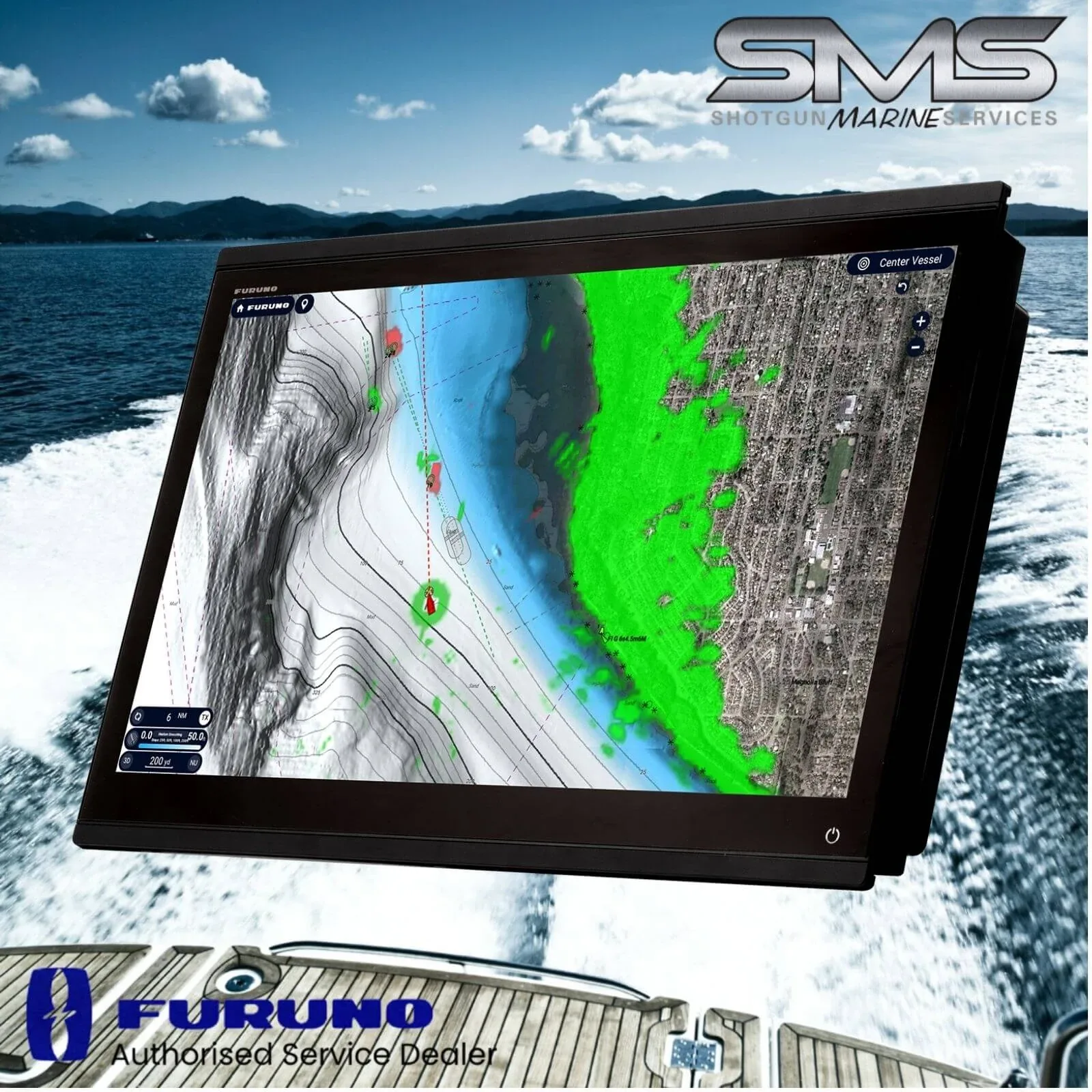

Furuno TZT22X 21.5" NavNet TZtouchXL MFD

Key Features

• 21.5" wide, frameless all-glass touchscreen, Full HD 1920 x 1080 resolution at 900 cd/m2 brightness for clear viewing in direct sunlight
• Hexacore processor for fast chart redraws and smooth split-screen operation

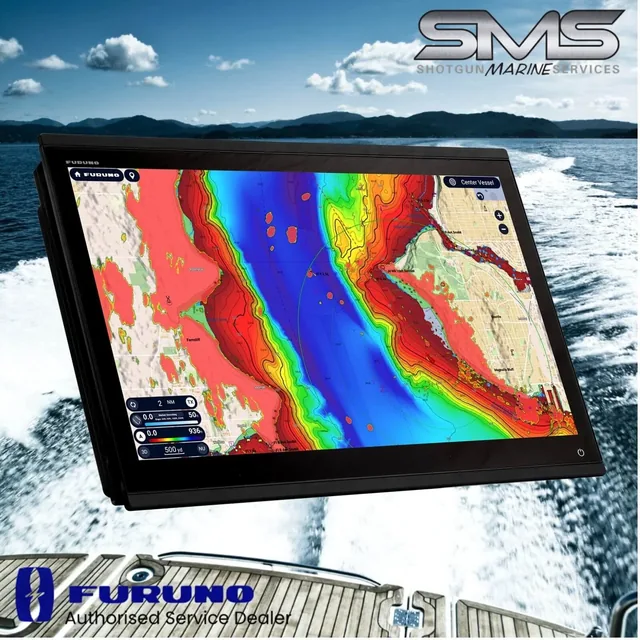

• TZ MAPS charting with BathyVision bathymetric mapping
• AI Routing, AI Avoidance Route and Risk Visualizer when paired with a Furuno DRS radar
• Fish-It, Drift-It and Follow-It fishing assist features
• TZ Cloud support for backing up user data and settings
• Frameless design allows side-by-side mounting with other TZtouchXL displays for multi-screen helms
• Split-screen layout, up to six windows on the one display

About the Furuno TZT22X

The TZT22X sits at the larger end of Furuno's TZtouchXL range, alongside the 16" and 24" glass displays. It doesn't include a built-in GPS receiver or fishfinder module, everything is added to the display over Furuno's network, which is normal for a display at this size and is how most flybridge and multi-station boats are set up anyway. That means the TZT22X is best thought of as the screen at the centre of a system, not a stand-alone chartplotter, and the system around it is where the real planning happens.

Specifications

Display	21.5" wide TFT IPS LCD, all-glass touchscreen
Resolution	Full HD 1920 x 1080
Brightness	900 cd/m2
Processor	Hexacore
Built-in GPS	None, external GPS sensor required
Built-in Sounder	None, accessed via network sounder module
Charting	TZ MAPS with BathyVision, AI Routing, Risk Visualizer (with compatible DRS radar)
Power Input	12 / 24 VDC
Mounting	Flush or bracket mount, side-by-side mountable with other TZtouchXL displays
Weight	Approx. 8.00 kg, estimated pending confirmed Furuno spec sheet
Manufacturer Part Number	TZT22X

What's Included

• Furuno TZT22X 21.5" display unit
• Power cable and mounting hardware
• Furuno quick reference guide

GPS sensor, sounder module, transducer, radar and network cabling are not included and are quoted separately based on your boat and existing system.

Price shown is for the display unit, supplied only. Installation and any additional network hardware are quoted separately.

Who This Suits

The TZT22X suits owners with, or planning, a full NavNet TZtouchXL system, offshore fishos and cruisers wanting a large helm display, and multi-station boats where a second or third large screen is needed at another helm position. It's not the right starting point if you want a simple, self-contained chartplotter with sounder built in, smaller TZtouchXL or TZtouch3 models are a better fit for that.

FAQs

Can I mount two TZT22X displays side by side?
Yes. The frameless all-glass design is built for side-by-side mounting with other TZtouchXL displays for multi-screen helms.

What radar works with the TZT22X?
It's compatible with Furuno's DRS Doppler and X-Class radar range. AI Routing and Risk Visualizer require a compatible DRS radar on the network.
