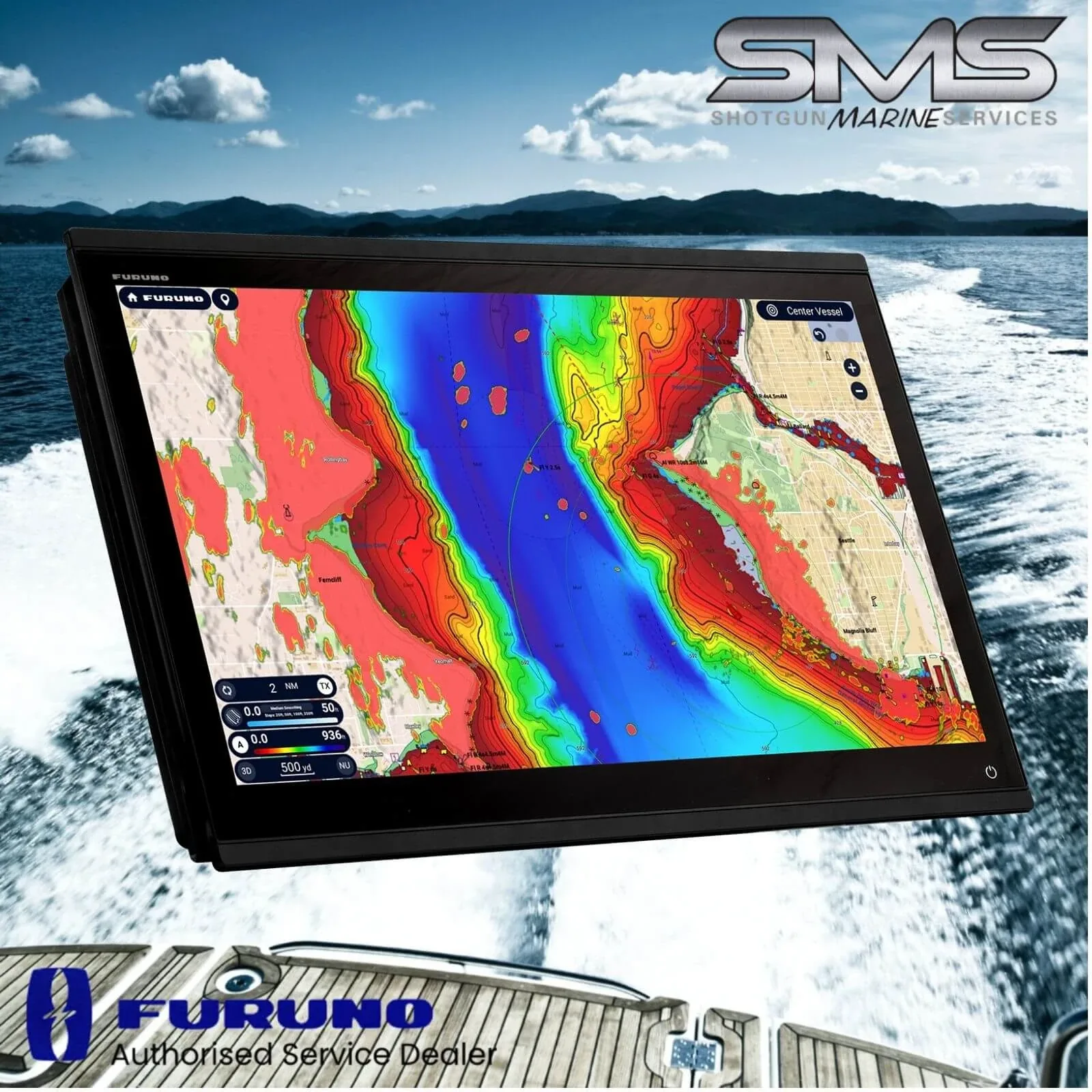

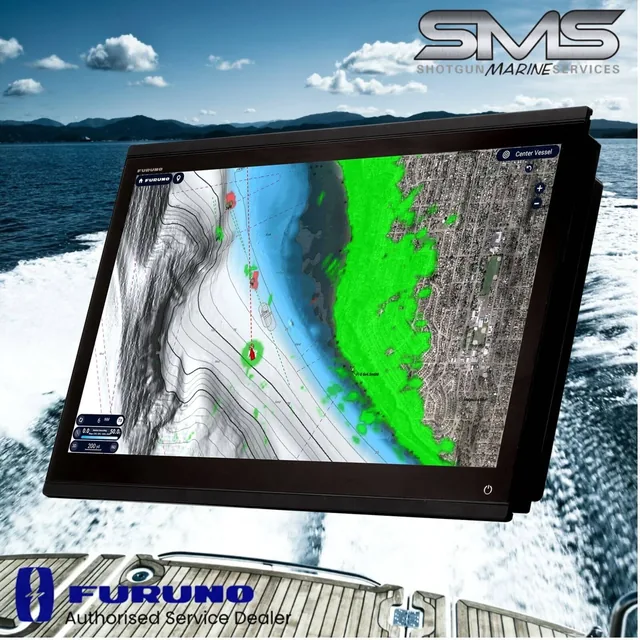

Furuno TZT24X 24" NavNet TZtouchXL MFD

Key Features

• 24" wide, frameless all-glass touchscreen, Full HD 1920 x 1080 resolution for clear viewing at the helm
• Hexacore processor for fast chart redraws and smooth split-screen operation
• TZ MAPS charting with BathyVision bathymetric mapping
• AI Routing, AI Avoidance Route and Risk Visualizer when paired with a Furuno DRS radar
• Fish-It, Drift-It and Follow-It fishing assist features
• TZ Cloud support for backing up user data and settings
• Frameless design allows side-by-side mounting with other TZtouchXL displays for multi-screen helms

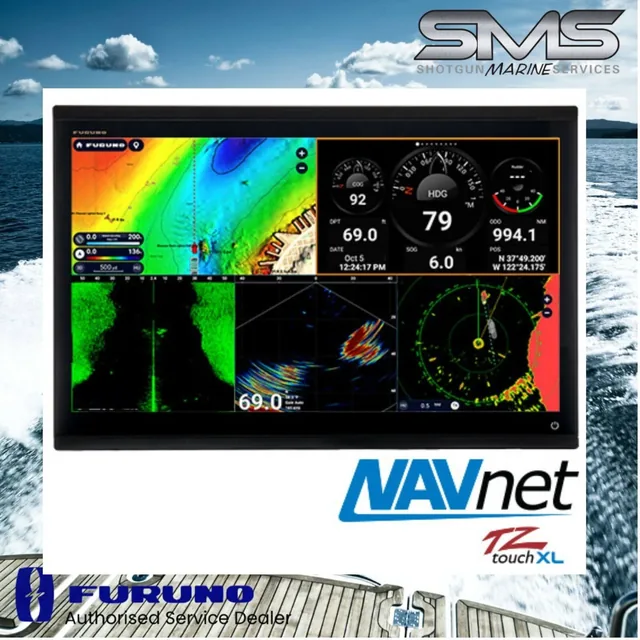

• Split-screen layout, up to six windows on the one display

About the Furuno TZT24X

The TZT24X is the largest screen in Furuno's TZtouchXL range, one step up from the 22" model, and shares the same hexacore processor and feature set as the rest of the range. It doesn't include a built-in GPS receiver or fishfinder module, everything is added to the display over Furuno's NavNet network, which is normal for a display at this size and is how most flybridge and multi-station boats are set up anyway. That makes the TZT24X best thought of as the largest screen at the centre of a system, not a stand-alone chartplotter, and the system around it is where the real planning happens.

Specifications

Display	24" wide TFT IPS LCD, all-glass touchscreen
Resolution	Full HD 1920 x 1080
Processor	Hexacore
Built-in GPS	None, external GPS sensor required
Built-in Sounder	None, accessed via network sounder module
Charting	TZ MAPS with BathyVision, AI Routing, Risk Visualizer (with compatible DRS radar)
Power Input	12 / 24 VDC
Mounting	Flush or bracket mount, side-by-side mountable with other TZtouchXL displays
Weight	Approx. 9.50 kg, estimated pending confirmed Furuno spec sheet
Manufacturer Part Number	TZT24X

What's Included

• Furuno TZT24X 24" display unit
• Power cable and mounting hardware
• Furuno quick reference guide

GPS sensor, sounder module, transducer, radar and network cabling are not included and are quoted separately based on your boat and existing system.

Price shown is for the display unit, supplied only. Installation and any additional network hardware are quoted separately.

Who This Suits

The TZT24X suits owners with, or planning, a full NavNet TZtouchXL system and wanting the largest available screen, offshore fishos and cruisers wanting maximum helm display area, and multi-station boats where the biggest second or third screen is needed at another helm position. It's not the right starting point if you want a simple, self-contained chartplotter with sounder built in, smaller TZtouchXL or TZtouch3 models are a better fit for that.

FAQs

What's the difference between the TZT22X and TZT24X?
Both are frameless all-glass TZtouchXL displays with the same feature set. The TZT24X is simply the larger of the two at 24" versus 21.5", for helms with more space or where maximum screen area matters.

Can I mount two TZT24X displays side by side?
Yes. The frameless all-glass design is built for side-by-side mounting with other TZtouchXL displays for multi-screen helms.

What radar works with the TZT24X?
It's compatible with Furuno's DRS Doppler and X-Class radar range. AI Routing and Risk Visualizer require a compatible DRS radar on the network.
