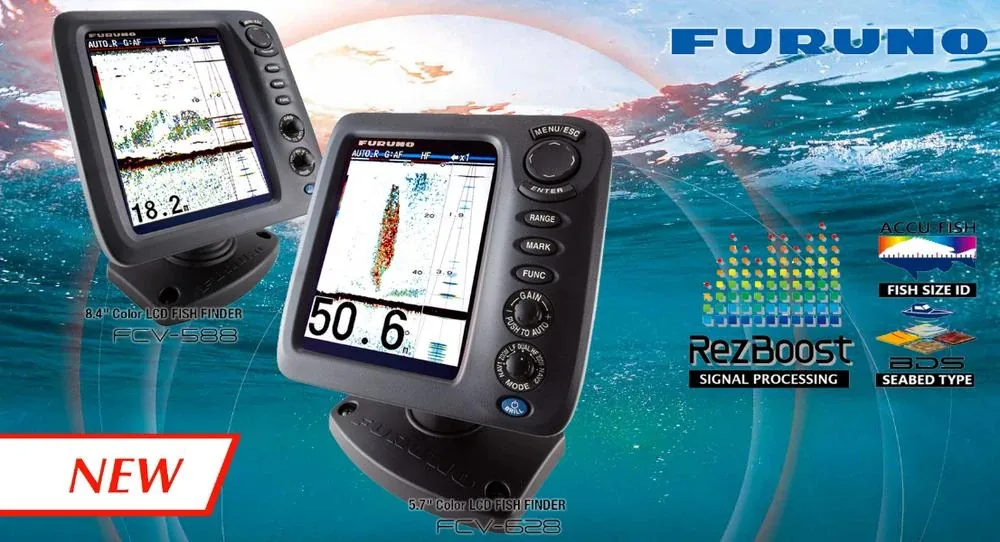

Furuno FCV-628 5.7" Colour LCD Fish Finder / Sounder

Furuno FCV-628 Color Fishfinder

Available December 2015

High resolution fish echoes Incorperating revolutionary new RezBoost™ technology, providing an incredible enhancement in resolution and target separation.FISH finding technology just took a big leap with RezBoost

This purpose is useful for discriminating bottom ­fish as well as identifying fish school density­ Circles displayed over ­fish echoes along with their approximate size.

Bottom Discrimination function

FISH Alarm function

Graphic mode

The standard graphic display mode fishows the most probable bottom composition by graphic or four colors

Probability mode

The probability display mode fishows the most probable bottom composition in graph form

ACCU-FISH identi­fies individual ­fish with size and ­fish mark function.

The ­fish spot can be used to display separate ­fish echoes when they are detected It helps beginners to identify ­fish echoes for a more engaging ­fishing experience FISH marks are selectable from either a circle or square, as well as, two ­fish symbols The ­fish symbols, exhibited in two different sizes (Large: over 50 cm, Small: 10 to 49 cm), are a great help for anglers when identifying individual species. The circle and square shapes symbolise and identify individual ­fish without hiding the underlying bottom sea bed rocks/Gravel/Sand/Mud

White Line function

Distinguishes fish from the seabed­ In some instances, ­fish size indicated on FCV-628 may differ from actual size (Please read the operator's manual carefully before using this feature)

FCV-628 uses revolutionary new RezBoost™ technology, providing an incredible boost in resolution and target separation, utilizing a compact narrowband transducer With RezBoost™ the capabilities of conventional narrowband transducers can be dramatically improved (Compared to conventional signal processing techniques FDF), a RezBoost™ ­FISH finder produces an image that is up to 8 times more defined.

A TruEcho CHIRP™ ­FISHfinder (requires a special transducer) produces an image that is up to 10 times clearer when compared with FDF What can be done with a conventional narrowband transducer, just like the one you might have fitted on your boat, is really remarkable.

RezBoost™

FCV-628 uses revolutionary new RezBoost™ technology, providing an incredible boost in resolution and target separation, utilizing a compact narrowband transducer

1 RezBoost™ performance may vary depending on depth, range and signal frequency used*

2 The Enhanced mode of RezBoost™ requires a RezBoost™ capable thru-hull or transom mount transducer*

RezBoost™ is a revolutionary new signal processing technology developed by FURUNO that

• Improves resolution and target separation by means of conventional narrowband transducers
• Spot distinct game ­fish neighbouring bait balls, as well as ­fish close to the seabed
• With RezBoost™, not only can you anticipate higher resolution and crisper visuals, but also

Improvements in the ACCU-FISH™ function

• Dual-frequency ­FISHfinder equipped with revolutionary new RezBoost™ signal processing technology
• Improved clarity and resolution that was previously impossible with conventional narrowband
• transducers has been made possible thanks to the new RezBoost™ technology

ACCU-FISH™ - A unique ­fish size analyzer based on the latest digital technology

Bottom Discrimination - Analyze bottom structure

Provides an at-a-glance recognition of bottom composition with four types of graphical displays (Rocks/Sand/Gravel/Mud) when associated to a supported thru-hull or transom mount transducer.

White Line feature - Discriminate ­fish sitting near the bottom

The upper edge of the0 bottom echo is displayed in white to clearly show bottom arrangements. This feature helps to differentiate between weeds and bottom ­fish distinctly (customisable Alarm function (depth, ­fish echoes, etc.)

Share and display information on a chart plotter

FURUNO’s TLL (Target Lat/Lon) output allows you to interface the FCV-628 with your FURUNO chart plotter so that you can mark ­fishing lands with (various information (L/L, Depth, Water Temp, FISH size and Bottom type (Requires a chart plotter (Fast transmission rate of 3,000 PRR (Pulse Repetition Rate(per minute (at 5 m depth range)

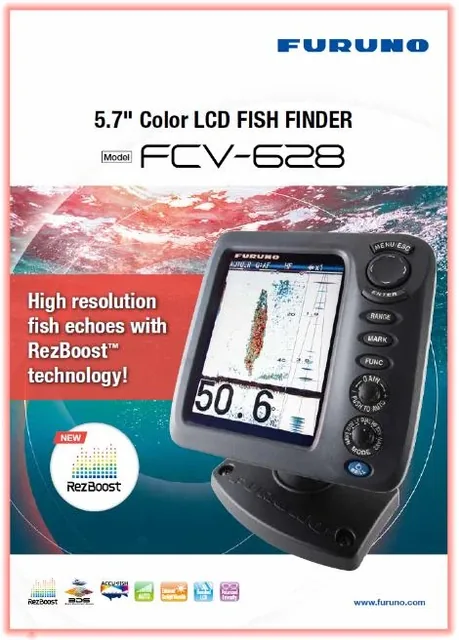

5 7" Color LCD FISH FINDER

Model

Recognizes individual or multiple ­fish instantaneously

ACCU-FISH™ is a ­fish size assessment function of FCV-628 that is proprietary to FURUNO In order to assess individual fish size, echo returns are evaluated based on strength and­ turned into ­fish size display on screen, ACCU-FISH™ can detect ­fish size from 10 to 199 cm in depths of 2 to 100 m

Display ­fish marks

When ­fish echoes appear in an area pre-set by the operator, the FCV-628 will sound a loud alarm, as well as, display an alarm icon on screen. The integrated alarm can also be set to be triggered by specific condition for water depth, target depth, water temperature, bottom type and more. You never have to miss a target again.

FCV-628’s Bottom Discrimination function enables the ­FISHfinder to indicate. Whether the bottom is composed mainly of rocks, gravel, sand or mud The Bottom Discrimination function provides you with valuable information that helps you locate rich ­fishing grounds, and boost your catch of the day

Please keep the following in mind when using the Bottom Discrimination Sounder;

1) Use at a depth of 5 m - 100 m

2) Use a transom or thru-hull mount transducer

3) Install the transducer parallel to the bottom of the vessel

“4) To show a consistent display of the actual bottom, set the display range to “auto

5) Enter the ship’s draft value

6) Use a ship speed of 10 kn or less

7) In some instances, the bottom component indicated on the FCV-628 may differ from the actual bottom structure Please read the operator's manual carefully before using this feature With RezBoost™ technology, the resolution is increased, leading to sharper and more de­fined echoes in resolution and target separation, utilizing a compact narrowband transducer.

1 RezBoost™ performance may vary depending on depth, range and signal frequency used*

2 The Enhanced mode of RezBoost™ requires a RezBoost™ capable thru-hull or transom mount transducer*

Recognizes individual or multiple ­fish instantaneously ACCU-FISH™ is a ­fish size assessment function of FCV-628 that is proprietary to FURUNO In order to assess individual fish size, echo returns are evaluated based on strength and­ turned into ­fish size display on screen ,ACCU-FISH™ can detect ­fish size from 10 to 199 cm in depths of 2 to 100 m Display ­fish marks When ­fish echoes appear in an area preset by the user, the FCV-628 will sound a loud alarm, as well as, display an alarm icon on screen.

The gimbal mount allows the display unit to swivel around when desktop mounted You can adjust the angle of the display for optimal viewing comfort Swivel mounting bracket

Interconnection Diagram

GPS

Navigator

GPS

Plotter

12-24 VDC Transducer

Nmea0183

Option

GENERAL

Frequency 50 and 200 kHz

Output Power 600 W

DISPLAY

Display Type 5 7" color LCD Effective Display Area 87 1 (W) x 116 2 (H) mm

(Pixel Number 480 x 640 (VGA ,(Display Single frequency (50 or 200 kHz ,Dual-frequency, Zoom, Nav data ,A-scope, Marker zoom, Bottom zoom ,Bottom-lock, Bottom Discrimination ACCU-FISH™, RezBoost*Basic Range 2-1200 mm, ft, fm, HR, pb can be selected in the men , Alarm Bottom, FISH (Normal), ACCU-FISH FISH (B/L), Bottom Discrimination, FISH

Power Supply 12-24 Vdc: 1 1-0 5 A

EQUIPMENT LIST

Standard

1 Display Unit CV-628

2 Installation Materials and Standard Spare Parts

Option

1 Speed/Temperature Sensor

St-02Msb, St-02Psb, T-04Msb, T-04Mtb

2 Connector Kit for Connection of Speed

Temperature Sensor or Temperature Sensor &

3 NMEA+Power Cable

(Transducers (Specify when ordering

Ss60-Sltd/20)
