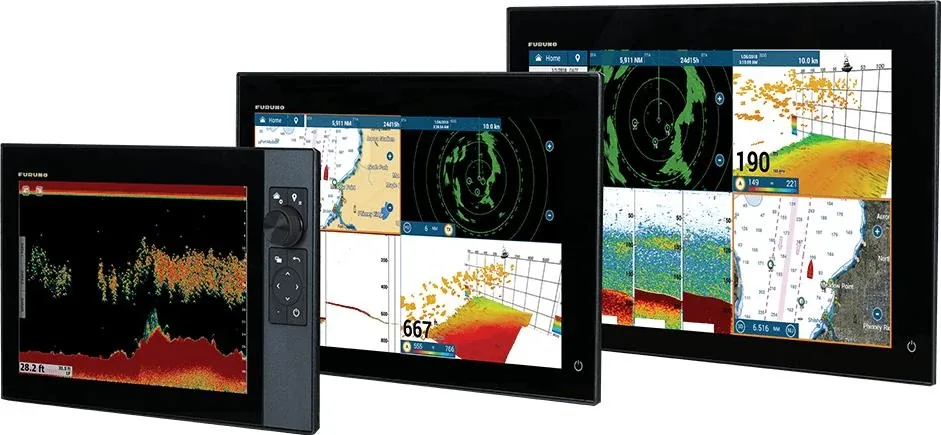

Furuno TZT3 Touch 16F 16" Multi Function Display

Furuno TZT3 Touch 16F - 16" Multi Function Display

The Furuno TZT3 Touch 16F is a serious bit of kit for offshore fishos and bluewater cruisers who want big-screen clarity, fast processing and proper sonar integration.

With a bright 16" bonded glass display and Furuno’s NavNet TZtouch3 platform, this unit is built for serious navigation, radar overlay, autopilot integration and high-performance sounder setups.

Why Boaties Choose the TZT3 16F

• Large 16" bonded glass IPS display
• Fast quad-core processor
• Full NavNet TZtouch3 networking
• Radar, AIS & autopilot integration ready
• Black box sonar & CHIRP compatibility
• Clean multi-screen helm setup

Furuno gear is extremely capable - but only when installed correctly.

• Correct transducer matching
• Clean NMEA2000 backbone design
• Power supply noise control
• Radar alignment & setup

Frequently Asked Questions – Furuno TZT3 16F

Yes. When paired with the right Furuno sounder module and transducer, it’s extremely capable offshore.

Yes. It integrates with Furuno radar systems, AIS, and compatible autopilots via proper networking.

More more info on the TZ touch 3 - click here

Specifications	Comparison Models
	MODEL: TZ Touch 3 12F	MODEL: TZ Touch 3 6F	MODEL: TZ Touch 3 19F
DISPLAY UNIT
Type	Color TFT multi touch In-Plane Switching (IPS) LCD
Screen Size	12.1" Wide	15.6" Wide	18.5" Wide
Screen Resolution	WXGA 1280 x 800	FHD 1920 x 1080	FHD 1920 x 1080
Screen Brightness	900 cd/m2 (typical)	1000 cd/m2 (typical)	900 cd/m2 (typical)
Display Colors	16,770,000 colors (Chart Plotter), 64 colors (Radar/Fish Finder)
Language	Bulgarian, Chinese, Danish, English (USA/UK), Finnish, French,German, Greek, Italian, Japanese, Norwegian, Portuguese, Russian, Spanish, Swedish
GPS/WAAS
Receiver Type	GPS: 72 channels, SBAS: 1 channel (C/A mode, WAAS)
Receiving Frequency	L1 (1575.42 MHz)
Time to First Fix	100 s (cold start)
Accuracy	10 m (GPS), 7 m (MSAS), 3 m (WAAS)
Position Update Interval	0.1 s
CHART PLOTTER
Cartography	MapMedia mm3d chart (C-MAP/Navionics/NOAA)
Memory Capacity	30,000 user points, 30,000 points for ship's tracks, 200 planned routes (500 points per route)
Alarms	Anchor Watch, XTE, Depth*, Speed, Sea Surface Temperature*, Trip Distance, Fuel Gauge* (*external data required)
RADAR
Display Modes	Head-up*, North-up *Heading input required.
Echo Trail	Interval: 15 s, 30 s, 1 min, 3 mins, 6 mins, 15 mins, 30 mins and continuous
Target Tracking	30 ARPA Targets
Radar Alarms	Guard Zone, CPA/TCPA, Trigger, Video, Azimuth, Heading Line
FISH FINDER
Transmit Frequency	CW: 50/200 kHz CHIRP: 40 kHz to 225 kHz
Transducer	300/600 W or 1 kW* *Matching box MB1100 required for some FURUNO transducers.
Display Range	2-1, 200 m, shift: 0-1200 m
Extension Mode	ACCU-FISH™, A-Scope, Auto (Fishing/Cruising), RezBoost™, Bottom Discrimination, TruEcho CHIRP™
Picture Advance	8 steps: x4, x2, x1, 1/2, 1/4, 1/8, 1/16, stop
Fish Finder Alarms (option)	School of ?sh, School of ?sh for bottom lock
INTERFACE
CAN bus/NMEA2000	1 Port
Input	065280, 126992/126993/126996, 127237/127245/127251/127257/127488/127489/125505, 128259/128267, 129025/129026/129029/129330/129038/129039/129040/129041/129291/129538/129540, 129793/129794/129798/129801/129802/129808/129809/129810, 130306/130310/130311/130312/130313/130314/130316/130577/130578, 130817/130818/130820/130822/130823/130826/130827/130828/130880
Output	126992/126993/126996, 127250/127251/127257/127258, 128259/128267/128275, 129025/129026/129029/129033/129283/129284/129285, 130306/130310/130311/130312/130313/130314/130316
NMEA0183	1 Serial Output Port
Output	AAM, APB, BOD, DBT, DPT, GGA, GLL, GNS, GSA, GSV, RMB, RMC, RTE, TTM, VDM, VTG, WPL, XTE, ZDA
LAN	2 Ports (100 BASE-TX)
USB	1 Port (USB2.0) for touch monitor and control unit:	1 Port (USB2.0) for touch monitor and control unit: 1 Port USB
Video I/O	Input: 2 Ports (NTSC/PAL) Output: 1 Port (HDMI 720p)	Input: 2 ports (NTSC/PAL) and 1 port HDMI 1920 x 1080p or less (progressive only) Output: 1 port(HDMI 1080p)
AUX I/O	2 Ports (Event Switch and External Power Switch) and 1 Port Buzzer Output
SD Card Slot	1 Micro SD Card Slot (Micro SDXC, rear), 2 Slots Card Unit: Model SDU-001 (option)
Wireless LAN	IEEE802.11b/g/n, Transmit frequency: 2.412 to 2,462 GHz, 11 dBm max
Transducer	1 Port
ENVIRONMENT
Temperature (IEC60945)	-15°C to +55°C
Relative Humidity	93% or less at +40°C
Waterproo?ng	IP56
POWER
	12-24 VDC
	2.3 - 1.2 A	4.3 - 2.2 A	4.7 - 2.3 A
