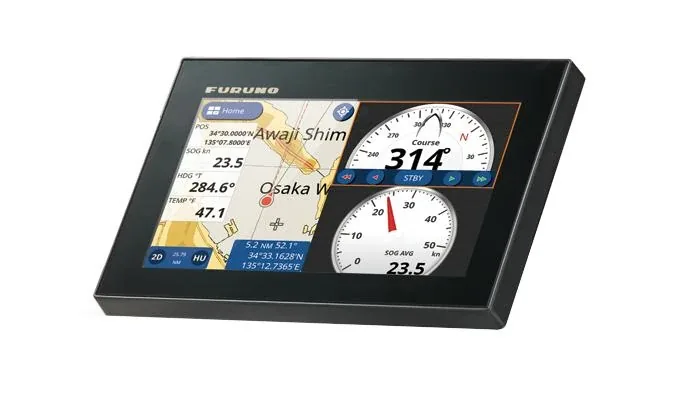

Furuno GP-1871F 7" Colour GPS Chart Plotter / Fish Finder

Furuno GP-1871F Combo Includes C-Map Chart

? Practical as well as intuitive slide-out menus
The GP-1871F/ 1971F wise interface, acquired from the NavNet TZtouch2,
features slide-out food selections containing all the devices and information you require to be in complete control.

Slide-out Menu

? Present settings customization Layers

Customize your screen settings and also develop the bestmix to fit your specific requirements.

Customization menu selection

Key Menu and also Show Mode setup

? Finger Motions
With the Finger Motions (one or two fingers) you can either zoom-in, zoom-out, dual tap to take a screenshot or even leap to a full-screen mode when using Split-screen screen setting.

Integrated CHIRP FISH FINDER
? Unrivaled information with TruEcho CHIRP ™.
The high degree of detail available with TruEcho CHIRP ™ modern technology helps to identify fish institutions, also when near the sea bed.

Fish can be observed with a really high resolution and also are displayed in a distinctive boomerang shape. The clear presentation marks individual video game fish and lure fish, also when tightly coached together.

? ACCU-FISH ™ and also Base Discrimination with RezBoost ™.
With FURUNO's RezBoost ™ data processing innovation, f

Fish schools as well as echoes are revealed with high resolution while you can analyze fish size and also lower make-up thanks to ACCU-FISH ™ and also Base Discrimination functions.

Additionnaly, ACCU-FISH ™ symbols and also shades can be openly customized according to the size as well as depth of the targeted fish.

Chart Plotter (with internal GP antenna).

? Comprehensive Chart with C-MAP 4D compatibility.

By utilizing the incredibly rich C-MAP 4D charts, the GP-1871F provides extremely precise information that includes plenty of beneficial details, such as alleviation vectors, tidal streams as well as aquatic plans, significantly enhancing your navigational awareness.

C-MAP Chart data.

Chart Plotter with instruments panels.

? Autopilot controls.

Via the CAN bus network interface, The NAVpilot-300 and also NAVpilot-711C can be linked to the GP-1871F as well as GP-1971F as well as regulated straight from the Chart Plotter.

Chart Plotter with NAVpilot controls.

? C-MAP C-Weather.
C-Weather information can be downloaded from C-map. com providing Wind, Wave, Weather, Moisture and Temperature information.

? Plotter with AIS symbols.
When attached to an AIS receiver, the GP-1871F/ 1971F will certainly present the most recent AIS information and give vessel info.

? Different display settings.

Consisting of Shaded reliefs, 3D and also Satellite sights.

Wireless Radar Connection.

? DRS4W 1st Watch Wireless Radar.
The GP-1871F and GP-1971F are connectable to the 1st Watch Wireless Radar.
( Outcome Power 4 kW) offering your Chart Plotter a significant upgrade in precision as well as security.

Plotter Overlay mode.

Radar mode.
Easy screenshot and also MicroSD card.
Tap the screen with 2 fingers to record a screenshot.
that will be conserved directly to your microSD card.

AR (Anti-Reflective) glass layer and also strengthened glass filter.
Interior GPS antenna for simple and very easy setup.
Daylight readable with exceptional readability, brightness of 1000 cd/m2.
Screenshots.

CHIRP FISH FINDER + Quick Menu Selection.

Specs.
Show Device.
Screen Kind.
GP-1871F: 7" Wide Color TFT LCD.
Display Resolution.
WVGA 800 x 480 pixels.
GPS Antenna.
Internal Antenna.
Display Settings.
- Chart Plotter.
- Fish Finder.
- Radar (link to the first Watch Wireless Radar DRS4W needed).
- AIS (connection to AIS sensing unit called for).
- Instruments (Nav Data, Engine, Wind, Fuel container) -.
- Autopilot (connection to the FURUNO NAVpilot-300 or 700 collection called for).
Language.
English (US & UK), French, Spanish, German, Italian, Portuguese, Danish, Swedish, Norwegian, Finnish, Greek, Japanese.
GPS/ SBAS (WAAS/EGNOS/MSAS).
Obtaining Type.
GENERAL PRACTITIONER 72 channels.
WAAS 1 network.
Receiving Frequency.
L1 (1575.42 MHz).
Accuracy.
GENERAL PRACTITIONERS: 10 m max, WAAS: 5 m max, MSAS: 7.5 m MAX.
PLOTTER.
Chart.
C-MAP 4D.
Memory Capability.
30,000 points for ship's track as well as waypoints.
1,000 prepared routes (Max. 50 points per path).
5,000 quickpoints.
FISH FINDER.
Regularity.
CHIRP: 40 to 225 kHz.
CW: 50/200 kHz.
Transducer.
300 W or 600 W or 1kW (Transducer reliant).
Array.
5-1, 200m, shift:0 -500 m.
Settings.
TruEcho CHIRP ™ *, RezBoost ™ **, ACCU-FISH ™ **, Base Discrimination **, Dual Frequency **, Dual Variety ** Car gain (Fishing/Cruising), Manual gain, A-Scope, Pen Zoom, Base Zoom, Base Lock.
* CHIRP committed transducer required.
** Twin regularity CW compatible transducer required.
Interface.
NMEA2000.
