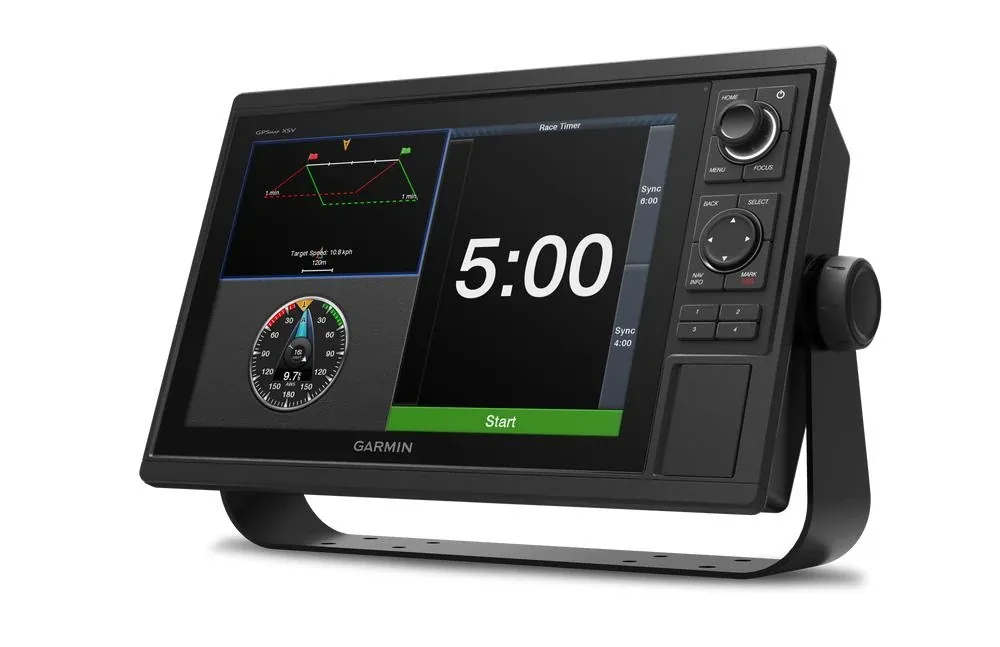

Garmin GPSMAP® 1222xsv 12" Chartplotter Sounder

You get detailed mapping, clean sonar and fast processing in one unit - no mucking around with extra charts or add-ons. Just power it up and go fishing.

Why the GPSMAP 1253xsv is a Smart All-Round Offshore Setup

• 12” high-resolution IPS display - clear in full sun and wide viewing angles
• Built-in CHIRP, ClearVü & SideVü sonar for proper fish detection
• Fast processor for smooth charts and split screens
• Garmin Marine Network + NMEA 2000 connectivity
• Supports radar, autopilot and LiveScope upgrades

This isn’t just a sounder - it’s a full marine electronics system you build your boat around.

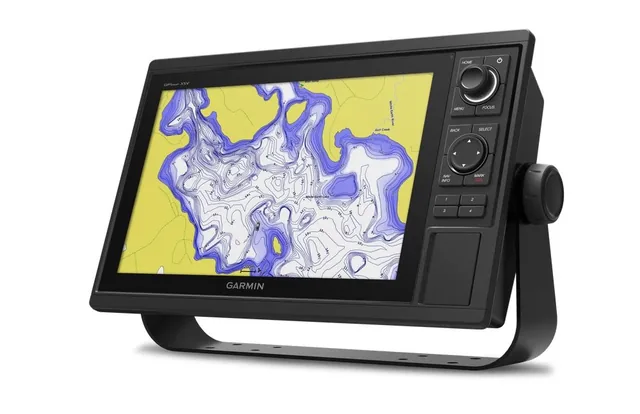

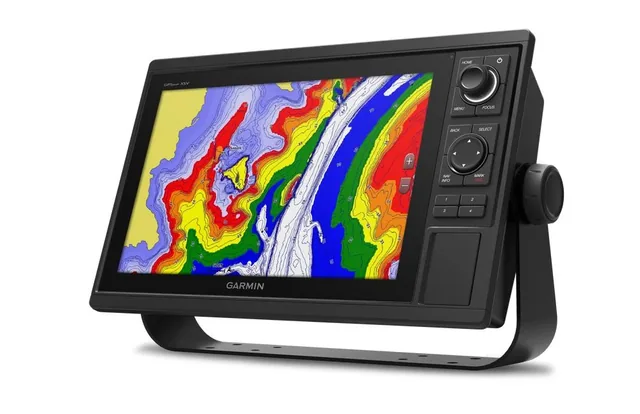

This unit comes with Garmin Navionics+ mapping already loaded - giving you detailed coastal charts, depth contours and Auto Guidance+ straight out of the box.

No extra purchases, no setup headaches - just power it up and go fishing.

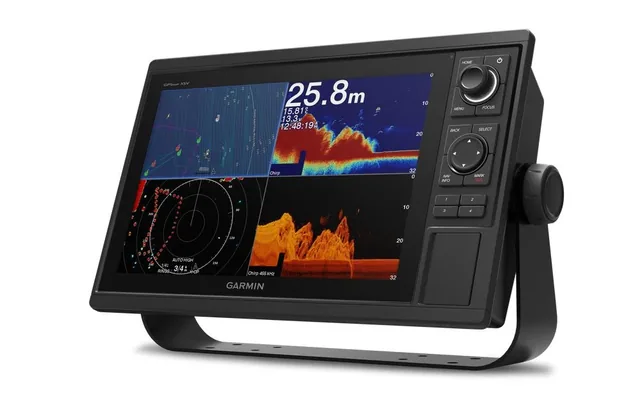

Serious Sonar Performance Built In

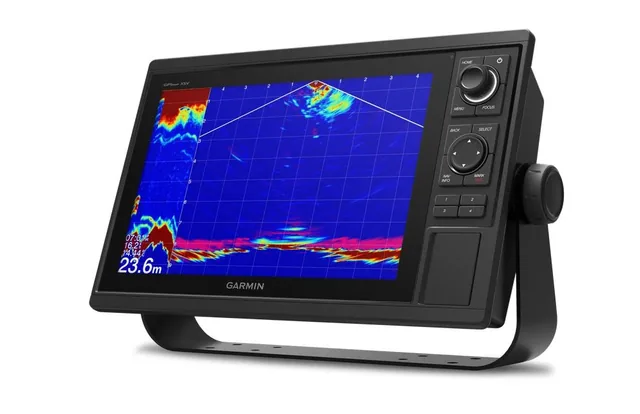

The GPSMAP 1253xsv supports CHIRP, ClearVü and SideVü sonar, along with high-power traditional sonar when paired correctly - giving you proper fish separation and structure detail offshore.

Perfect for Offshore & Coastal Fishing

Ideal for:

• Trailer boats heading offshore regularly
• Boaties upgrading from entry-level sounders
• Fishos wanting mapping + sonar sorted in one clean setup

Not sure if this is the right unit?

Supply + Install Packages Available

This is where most setups go wrong — not the unit, but how it’s installed and configured.

• Correct transducer matched to your fishing style
• Clean wiring and power setup (no interference issues)
• Radar and autopilot integration

Want to take it to the next level?

This unit pairs perfectly with Garmin LiveScope XR systems for real-time sonar.

Supply + Install Packages Available

This is where most setups go wrong - not the unit, but how it’s installed and

configured.

• Correct transducer matched to your fishing style
• Clean wiring and power setup (no interference issues)
• LiveScope and radar integration ready

Not sure what you need?

Start Your Setup Plan

Ready to upgrade?

View Supply & Install Packages

Quick question?

Build Your Garmin System

Garmin LiveScope XR Installation & Systems

Garmin Radar Installation

View All GPSMAP Units

Garmin GPSMAP 1253xsv – Common Questions

Yes - it includes Garmin Navionics+ charts with detailed mapping and updates.

Yes — this is one of the best all-round packages if you want charts, sonar and upgrade options all in one unit.

Absolutely. This unit fully supports LiveS

cope and other Garmin upgrades.

Yes - built-in CHIRP, ClearVü and SideVü sonar (transducer required for full performance).

Every boat is different - hull type, fishing style and where you fish all matter.

Start Your Setup Plan

The GPSMAP 1253xsv with Navionics+ is one of the easiest ways to step into a proper offshore setup.

View Supply & Install Packages

It has integrated assistance for Panoptix all-seeing sonar and premium Garmin sonar modules (transducers not included & sold separately). It features a large, intense & bright screen combined with a fast and user f

riendly keypad interface with user-programmable keys and a multifunction control knob.

Complete Network Sharing

Garmin Marine Network assistance allows sharing of sonar, maps, user data, dome or open-array radar, IP video cameras and Panoptix ™ sonar among multiple systems. Consists of NMEA 2000 network connectivity as well as NMEA 0183 support for auto-pilots, digital switching, climate & weather, FUSION-Link, VHF, AIS as well as other sensing units and transducers.

Product Specifications

Display size	10.3" x 6.4"; 12.1" diagonal (26.2 x 16.3 cm; 30.7 cm diagonal)
Display resolution	1280 x 800 pixels
Physical dimensions	14.1" x 8.9" x 2.7" (35.8 x 22.6 x 6.9 mm)
Receiver	10 Hz high-sensitivity
Water rating	IPX7
Weight	5.2 lbs. (2.34 kg)
Mounting options	Bail or flush
Display type	WXGA display
Antenna	Internal or external over NMEA 2000

Maps & Navigation

Routes	100
Track log	50,000 points; 50 saved tracks
Preloaded maps	None
Accepts data cards	2 SD™ cards

Features

ClearVü	Yes with CHIRP (built-in)
Waypoints	5,000
Wireless connectivity	Yes
Transmit power	1 kW traditional; 1 kW CHIRP
NMEA 0183 compatible	Yes
Water temperature log and graph	Yes
GCV™ Black Box sonar support	Yes
Wireless mouse compatible	No
NMEA 0183 input ports	1
Dual-beam (77/200 kHz) sonar capable	Yes
Supports DSC (displays position data from DSC-capable VHF radio)	Yes
NMEA 2000® compatible	Yes
ActiveCaptain compatible	Yes
Supports AIS (tracks target ships position)	Yes
Sonar recording	Yes
Garmin Meteor™ Audio System compatible	Yes
Garmin Marine Network™ ports	2
Garmin Sonar compatible	Yes (built-in)
GSD™ Black Box sonar support	Yes
Sonar history rewind	Yes
Garmin SmartMode compatible (customizable monitor presets)	Yes
Wireless remote compatible	Yes
Supports FUSION-Link™ compatible radios	Yes
Maximum depth	5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions)
Dual-frequency (50/200 kHz) sonar capable	Yes
Transducer pin numbers	12
Bottom lock (shows return from the bottom up)	Yes
NMEA 0183 output ports	1
Tide tables	Yes
SiriusXM™ Weather & Radio compatible	Yes
Power consumption	Max power usage at 10 Vdc: 34.8 W Typical current draw at 12 Vdc: 2.2 A Max current draw at 12 Vdc: 2.9 A
Voltage range	10-32 Vdc input
Garmin Radar compatible	Yes

Upgrade to a Setup That Just Works

The GPSMAP 1222xsv is a proven unit for serious fishos who want reliability and performance without the fuss.

Get a Supply & Install Quote
