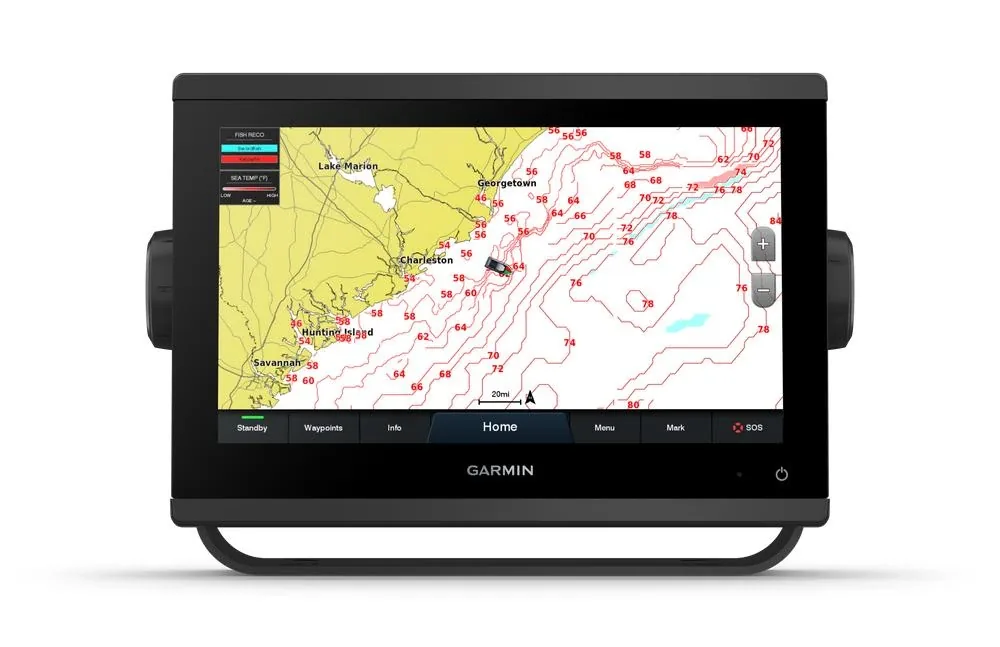

Garmin GPSMAP 953xsv 9" Chartplotter Sounder

Garmin GPSMAP 953xsv 9" Chartplotter Sounder Combo - Serious Upgrade from Echomap

If you’re stepping up from an entry-level sounder and want something faster, clearer and fully networkable, the Garmin GPSMAP 953xsv is where things start getting serious.

This is a proper chartplotter and sonar combo - not just a fishfinder - giving you clean sonar, fast charts and full system integration in a compact 9” unit built for Aussie boating conditions.

Why the GPSMAP 953xsv is a Big Step Up

• 9” IPS touchscreen – bright and easy to read in full sun
• Built-in CHIRP, ClearVü & SideVü sonar
• Fast processing – smooth charts and quick response
• Garmin Marine Network + NMEA 2000 connectivity
• Supports radar, autopilot and LiveScope upgrades

This unit gives you proper system capability - charts, sonar and networking - all in a compact setup that fits most trailer boats and offshore rigs.

Perfect for Trailer Boats & Coastal Offshore Fishing

It’s ideal for:

• Trailer boats upgrading from Echomap systems
• Coastal offshore fishing for snapper, kingfish and pelagics
• Boaties wanting LiveScope capability down the track

Paired with the right transducer, this unit shows bait, structure and fish properly - not just clutter on the screen.

Supply + Install Packages Available

This is where most setups go wrong - not the unit, but how it’s installed and configured.

• Correct transducer matched to your boat and fishing style
• Clean wiring and power setup (no interference issues)
• LiveScope and radar integration ready

Not sure what you need? Start here:

Tell us about your boat & get the right setup

Ready to go?

View Supply & Install Packages

Quick question?

Build Your Garmin Setup

• Garmin LiveScope XR Systems
• Garmin Radar Installation
• View All GPSMAP Units

Garmin GPSMAP 953xsv – Common Questions

Yes - faster processing, better networking and more upgrade options like radar and LiveScope.

Yes - built-in CHIRP, ClearVü and SideVü sonar when paired with the right transducer.

Absolutely. This is one of the best entry points into LiveScope setups.

Yes - for smaller offshore boats and trailer boats it’s a great balance of size and performance.

Every boat is different - hull type, fishing style, offshore vs inshore — it all matters.

Start Your Setup Plan

The GPSMAP 953xsv is where your setup starts getting serious - faster, clearer and fully expandable.

Features
Easily integrate with more engines.
Connects to 3rd party devices with digital switching OneHelm™
Design your electronic system with Garmin supreme network connectivity.
Compatible with premium maps and charts for the optimal navigation. Premium maps sold seperatly
On screeen visablily under the boat with built-in sonar capabilities.
Manage your marine experience from nearly anywhere2. (2 Requires ActiveCaptain app on your compatible smartphone paired to the GPSMAP 723xsv)
Physical & Performance
Dimensions: 233 x 162 x 76 mm
IPX7 - Waterrating
Antenna: Internal or external over NMEA 2000
Mounting options: Bail, flush or flat
Receiver: 10 Hz high-sensitivity
Display size is diagonally 9.0 inches -199 x 11.2 mm & 229 mm diagonal
1280 x 720 pixels of resolution to the display
Weight- 1.6 kilograms
WSVGA display
Navigation and Maps
Accepts data cards: 2 microSD™ cards (back of unit)
Tracklog 50,000 points; 50 saved tracks
Preloaded maps: BlueChart® g3 (coastal maps)
Routes: 100
Black Box sonar support GCV™
1kW max depth 5,000 (depth depends on water bottom type and conditions)
Can use with Wireless remote c
Sonar history rewind: Yes
J1939 Compatible: Yes
1 BNC input port video
SideVü with built in CHIRP
ActiveCaptain
Also capable of Dual-frequency sonar (50/200 kHz)
GRID™ (Garmin Remote Input Device) compatible
1 kWatt traditional, 1 kW CHIRP = transmit power
Works with Garmin Radar
displays position data from DSC-capable VHF radio)
Weather & Radio integration -SiriusXM™
1 x Garmin Marine Network ports
Garmin Sonar compatible included
Polarised Support
Graphs and logs Water temperature
1 x differential NMEA 0183 input ports
Supports FUSION-Link™ compatible radios
Wireless connectivite not including seperate wireless mouse
Power consumption, Max power usage at 10 Vdc: 17.6 W, Typical current draw at 12 Vdc: 1.1 A, Max current draw at 12 Vdc: 1.5 A
NMEA 0183 output ports: 1 (Differential)
NMEA 2000® compatible and able to record sonar
CHIRP sonar technology (Built-in)
Builtin Dual-beam (77/200 kHz) sonar
NMEA 0183 compatible
Frequencies = Traditional: 50/77/83/200 kHz, CHIRP (high, med, low, medium) ClearVü (260/455/800 kHz) (dependent on transducer)
5000 Waypoints
12 Pin Transducer pin numbers
Supports AIS (tracks target ships position) Yes
Garmin SmartMode compatible (customizable monitor presets) Yes
GSD™ Black Box sonar supported
Builtin ClearVü with CHIRP
Sailing Features and Tide tables:
What you get
GPSMAP 953xsv chartplotter with microSD™ card preinstalled
Power cable and NMEA 2000® T-connector, NMEA 2000 2mtr drop cable
8-pin transducer to 12-pin sounder adapter cable
Bail mount kit with knobs, Gasket included in Flush mount kit
Protective cover and Trim piece snap covers, warranty, instruction docs.

Faster, Sharper, Smarter

Added handling power and new slimline design and edge to edge glass screen. Improved smaller sized device impact, it's easy to retrofit this 9" plotter in a wider series of dashboard setups.

Improved Display Screen Optics

New higher-resolution 9" IPS displays deal improved sunshine readability as well as visibility from any angle, with 50% more pixels than previous-generation 9" GPSMAP gadgets.

GARMIN MARINE NETWORK If you have numerous suitable Garmin tools on your boat, you can share details- such as maps, user information, radar and IP camera video clip- amongst them.

NMEA 2000 ® AND ALSO NMEA 0183 NETWORKS Link to compatible autopilots, electronic changing, weather, Fusion-Link ™ audio system, media, VHF, AIS and also a lot more from one display.

ACTIVECAPTAIN ® APPLICATION Integrated Wi-Fi ® connection couple with the cost-free all-in-one mobile app for accessibility to the OneChart ™ attribute, wise notices, software updates, Garmin Helm ™ electronic switching, Garmin Quickdraw ™ Neighborhood data and also more.

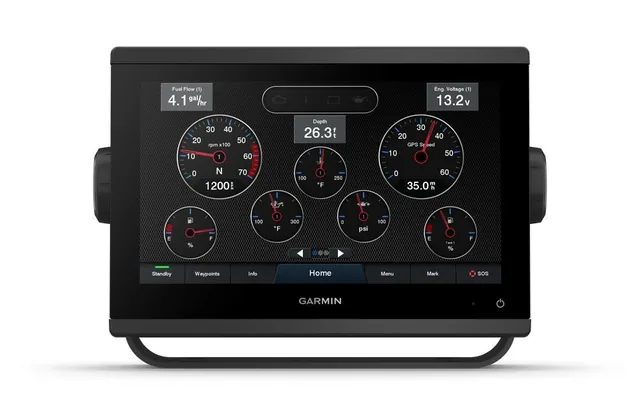

J1939 CONNECTIVITY Now you can connect your chartplotter to different type of engines - selected Yamaha included.

ONEHELM ATTRIBUTE This exclusive attribute brings together all the procedures and also capacities of pick third-party devices, such as EmpirBus ™ electronic changing, on one

SideVü, ClearVü and Traditional CHIRP Sonar with Mapping
