Raymarine Instrument i40 Bidata Display
Raymarine

Raymarine Instrument i40 Bidata Display

PN
E70066
SKU
DL-0071
UPC
723193730867
$345.45

In stock

Nothing charged online — we email an invoice with shipping confirmed.

  • Manufacturer warranty
  • Tracked, insured shipping
  • Real help: (800) 000-0000

Overview

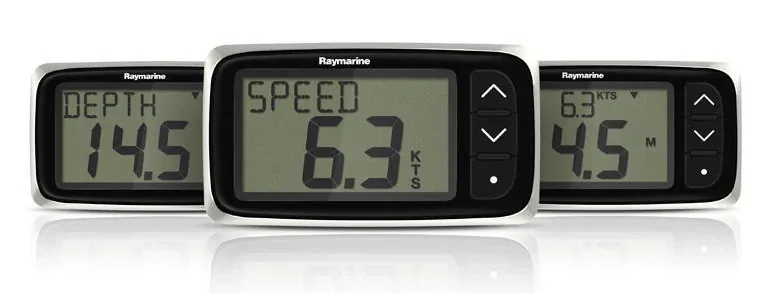

Raymarine i40 BiData Instrument Displays

Compact Digital Displays

i40 BiData

  • Speed, depth, log and sea temperature.
  • Two sets of data can be displayed on the one screens
  • Can be customised for large or small numbers.
  • SeaTalk interface (SeaTalkng when used with SeaTalk converter)

Dimensions

Nominal voltage

12V DC

Operating voltage range

10 - 16V DC

Current consumptions (12V supply) typical

Wind and Speed: 25mA | Depth: 30mA | Bidata: 35mA

Current consumptions (12V supply) maximum

100 mA

Operating temperature

0ºC to +55ºC

Temperature Storage

-30ºC to +70ºC

Relative humidity

Can be up to 93%

Water proofing

IPX6 Specs

Connections

SeaTalk, Transducer connections. Marine industry CAN systems compatible

Conformance

Europe 2004/108/EC

Specifications

Details

Nominal voltage12V DC
Operating voltage range10 - 16V DC
Current consumptions (12V supply) typicalWind and Speed: 25mA | Depth: 30mA | Bidata: 35mA
Current consumptions (12V supply) maximum100 mA
Operating temperature0ºC to +55ºC
Temperature Storage-30ºC to +70ºC
Relative humidityCan be up to 93%
Water proofingIPX6 Specs
ConnectionsSeaTalk, Transducer connections. Marine industry CAN systems compatible
ConformanceEurope 2004/108/EC
