Raymarine

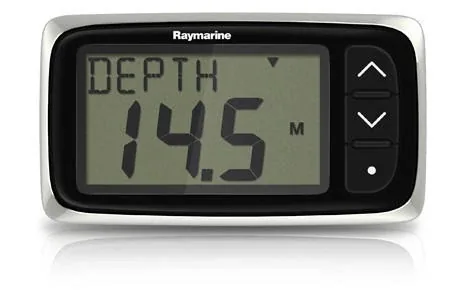

Raymarine Instrument i40 Depth Display
- PN
- E70064
- SKU
- DL-0070
- UPC
- 723193730843
$345.45
In stock
Nothing charged online — we email an invoice with shipping confirmed.
- Manufacturer warranty
- Tracked, insured shipping
- Real help: (800) 000-0000
Overview
Compact Digital Displays
Extra large (28mm max) digits and super sharp clarity LCDs
| Dimensions | |
| Nominal voltage | 12V DC |
| Operating voltage range | 10 - 16V DC |
| Current consumptions (12V supply) typical | Wind and Speed: 25mA | Depth: 30mA | Bidata: 35mA |
| Current consumptions (12V supply) maximum | 100 mA |
| Operating temperature | 0ºC to +55ºC |
| Temperature Storage | -30ºC to +70ºC |
| Relative humidity | Can be up to 93% |
| Water proofing | IPX6 Specs |
| Connections | SeaTalk, Transducer connections. Marine industry CAN systems compatible |
| Conformance | Europe 2004/108/EC |
Specifications
Details
| Nominal voltage | 12V DC |
|---|---|
| Operating voltage range | 10 - 16V DC |
| Current consumptions (12V supply) typical | Wind and Speed: 25mA | Depth: 30mA | Bidata: 35mA |
| Current consumptions (12V supply) maximum | 100 mA |
| Operating temperature | 0ºC to +55ºC |
| Temperature Storage | -30ºC to +70ºC |
| Relative humidity | Can be up to 93% |
| Water proofing | IPX6 Specs |
| Connections | SeaTalk, Transducer connections. Marine industry CAN systems compatible |
| Conformance | Europe 2004/108/EC |
