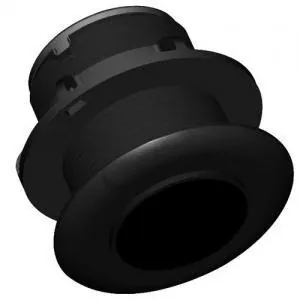

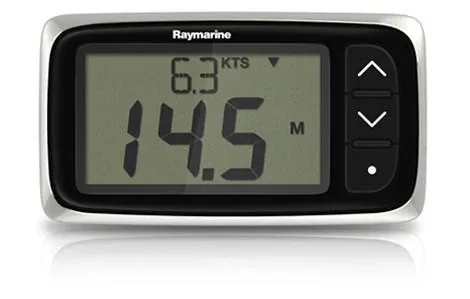

Raymarine Instrument i40 Depth Pack, with P7 Depth Through Hull Transducer

PN: E70142
SKU: DL-0072
UPC: 723193769249

$453.64 $480.91

You save $27.27 (6%)

In stock

Nothing charged online — we email an invoice with shipping confirmed.

Manufacturer warranty
Tracked, insured shipping
Real help: (800) 000-0000

Overview

Raymarine Instrument i40 Depth Pack, with P7 Depth Through Hull Transducer

Key features:

SeaTalk interface (SeaTalkng when used with SeaTalk converter)
Bright Red backlighting for improved visibility
oversized controls for ease of oceanic use
Low power consumption for improved battery life.
Built-in transducer interface
Same imprint /size as the older Raymarine ST40 instrumentation

	i40 SPECIFICATIONS
Model / Part Number	Speed E70063	Depth E70064	Wind E70065	BiData E70066
Dimensions
Nominal voltage	12V DC
Operating voltage range	10 - 16V DC
Current consumptions (12V supply) typical	Wind and Speed: 25mA \| Depth: 30mA \| Bidata: 35mA
Current consumptions (12V supply) maximum	100 mA
Operating temperature	0ºC to +55ºC
Temperature Storage	-30ºC to +70ºC
Relative humidity	Can be up to 93%
Water proofing	IPX6 Specs
Connections	SeaTalk, Transducer connections. Marine industry CAN systems compatible
Conformance	Europe 2004/108/EC

Specifications

Details

Nominal voltage	12V DC
Operating voltage range	10 - 16V DC
Current consumptions (12V supply) typical	Wind and Speed: 25mA \| Depth: 30mA \| Bidata: 35mA
Current consumptions (12V supply) maximum	100 mA
Operating temperature	0ºC to +55ºC
Temperature Storage	-30ºC to +70ºC
Relative humidity	Can be up to 93%
Water proofing	IPX6 Specs
Connections	SeaTalk, Transducer connections. Marine industry CAN systems compatible
Conformance	Europe 2004/108/EC

Raymarine Instrument i40 Depth Pack, with P7 Depth Through Hull Transducer

$453.64

Raymarine Instrument i40 Depth Pack, with P7 Depth Through Hull Transducer

Overview

Raymarine Instrument i40 Depth Pack, with P7 Depth Through Hull Transducer

SeaTalk interface (SeaTalkng when used with SeaTalk converter)

Bright Red backlighting for improved visibility

oversized controls for ease of oceanic use

Low power consumption for improved battery life.

Built-in transducer interface

Same imprint /size as the older Raymarine ST40 instrumentation

Specifications

Details
