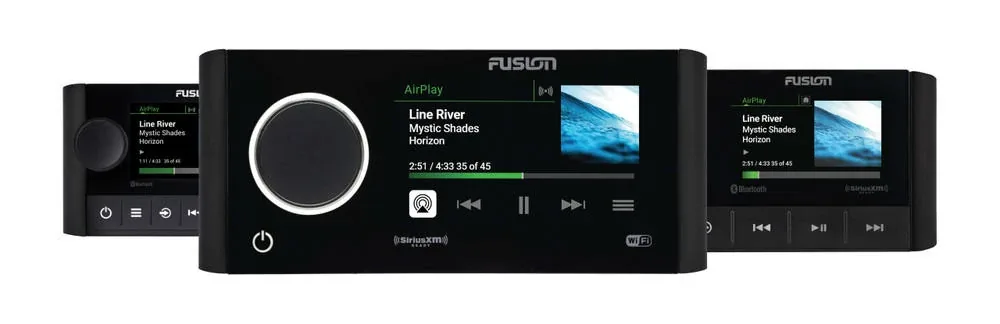

Fusion® Apollo SRX400 Marine Radio

DESIGNED AND ENGINEERED TO TRUE MARINE ™ STANDARDS

Improved the True-Marine style approach from Fusion, the Beauty SRX400 stereo has an IPX6 as well as IPX7 rated waterproof front panel and has been tested to a high level of protection against salt, fog, temperature level, vibration as well as UV.

MODERN DESIGN AND AESTHETICS

Offering uniformity across the helm, the brilliantly designed black front face mixes perfectly into black glass panels, enhancing other electronics as well as MFDs for a tidy, uniform and classy installation.

FUSION DIGITAL SIGNAL PROCESSING (DSP)

A premium listening experience made simple, Fusion DSP optimizes the audio signal provided to your Fusion system to generate remarkable audio that's top quality at all volume degrees, in every listening setting.

EASY-TO-INSTALL DSP PROFILES

With a couple of clicks on your compatible smart device, establishing your DSP profiles is made easy with the free Fusion-Link ™ app. You can establish the preconfigured DSP profiles once and enjoy listening to high-quality audio tailor-maid for your ears and the environment.

AUDIO STREAMING WITH WI-FI

In a world-first for marine stereos, delight in the clarity and also superior top quality of audio streaming with Wi-Fi technology, including the ease of AirPlay 2 from Apple® and also uninversal plug-and-play (UPnP).

APOLLO RA770 WITH SRX400

Designed with Wi-Fi onboard, the Apollo RA770 and its companion, the SRX400 can be linked without running any cords decreasing installation time, price and complexity.

OVER-THE-AIR SOFTWARE UPDATES

Updates are now readily available from your suitable smartphone or device, via the free Fusion-Link application. The Apollo Series is smartly simple as well as very easy to keep up to date.

STEREO GROUPING

Grouping permits you to link up numerous Apollo Series stereos attached to the same network and also play the very same audio resource synchronised across all stereos.

VOLUME CONTROL

Scroll with readily available zones on your boat, as well as enjoy independent volume control, or select ALL volume to adjust a group of stereos at the same time.

POWER OPTIONS

Power choices allow you to switch on any connected Apollo Series stereo in standby setting on the Fusion PartyBus ™- Network remotely from one more Apollo Series stereo.

HOME ZONE

Home Zone is the physical area onboard your boat in which the stereo is installed. After adjusting sound in an additional zone, the stereo defaults to control of the Home Zone after a period of inactivity

Enjoy entertainment control in the palm of your hand with the free Fusion-Link App.

Product Specifications

Physical dimensions	Stereo dimensions (H x W x D): 70 x 110 x 122 mm
Weight	340 g
Water rating	IPX6 and IPX7 (front panel only, when properly installed)
Power input	10.8-16 VDC
Operating temperature range	0° to 50° C
Current (max.)	8 A
Bluetooth wireless range	Up to 10 metres)
Wireless frequencies/protocols	Wi-Fi 2.4 GHz @ +15 dBm nominal Bluetooth 2.4 GHz @ +10 dBm nominal
Compass-safe distance	100 mm

Stereo features

Display	2.7-inch optically bonded colour LCD
Built-in amplifier	Class-D (2 Ohm stereo-stable)
Peak power	140 W
Rated power output (2 Ohm)	43 W rms x 2 @ 14.4 V input < 10% THD
Rated power output (4 Ohm)	26 W rms x 2 @ 14.4 V input < 10% THD
Built-in Digital Signal Processing	Yes (with preconfigured DSP profiles)
t*{v5}PartyBus™-Network capabilities	Yes (wired or wireless)
Fusion-Link™ control	Yes (with MFD and smartphone)
Multi-Zone™ technology	1 zone
Built-in Wi-Fi	Yes
Bluetooth wireless technology	Yes
Multi-language interface	Bulgarian / Chinese (Simplified) / Chinese (Traditional) / Croatian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Italian / Japanese / Korean / Norwegian / Polish / Portuguese (BR) / Portuguese (PT) / Slovenian / Spanish / Swedish / Thai / Turkish
Software updates	Over-the-air software updates via the Fusion-Link app
Warranty	3 years

Sources

Sources

AM / FM / Bluetooth / Apple AirPlay 2 / UPnP

Connectivity

Ethernet	One Ethernet port
AM/FM radio	One Motorola antenna connector port
Speaker	2 x speaker connections (1 zone amplified)
RCA Pre-out (left, right and subwoofer)	1 zone (requires external amplification)
Line out	1 (1 x L + R per zone, requires external amplification)
Subwoofer out	1 x mono output (requires external amplification)

In the Box

• Mounting gasket
• Mounting template
• Four 8-gauge, self-tapping screws
• Two screw covers
• Power, speaker, line-out, and subwoofer-out wiring harness
• Documentation

AirPlay as well as Apple are hallmarks of Apple Inc., signed up in the U.S. and also various other nations. Wi-Fi ® is a registered trademark of the Wi-Fi Alliance.
