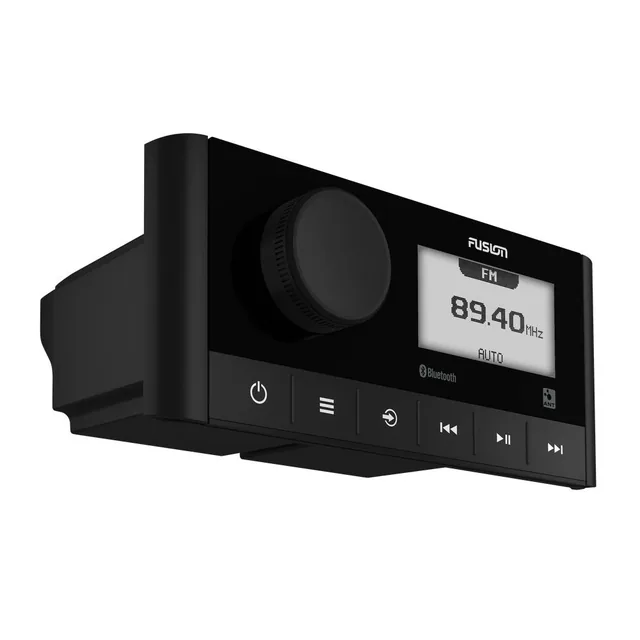

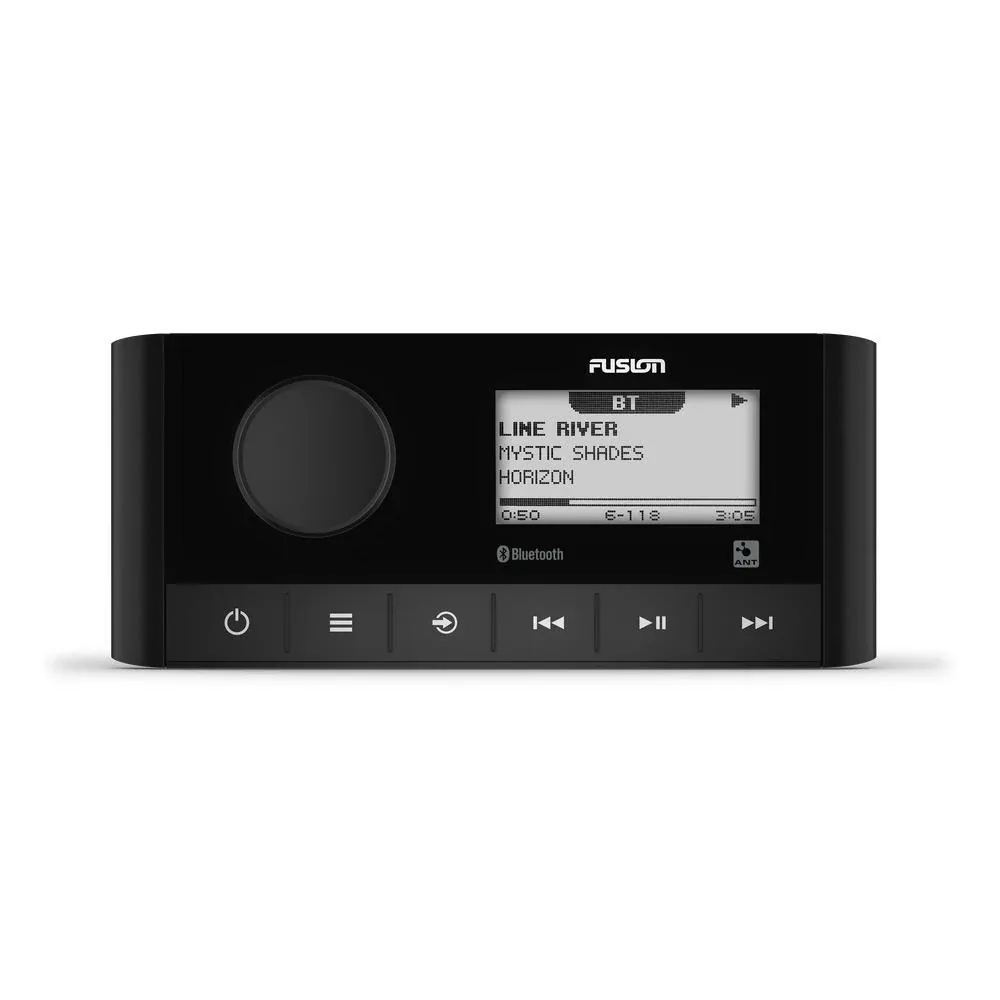

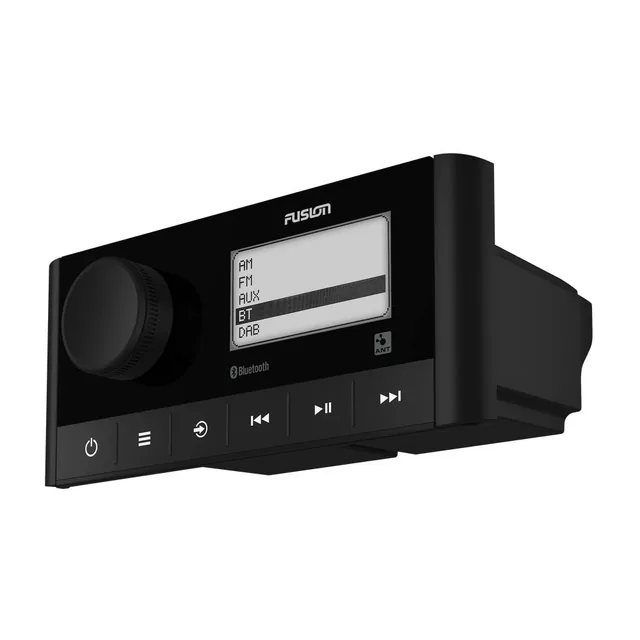

Fusion® MS-RA60 Marine Stereo

IPX6 AND IPX7 INGRESS PROTECTION

Designed and engineered for the harsh marine environment, the MS-RA60 stereo has an IPX6- and IPX7-rated water-resistant front panel to perform and last on board.

MODERN DESIGN AND AESTHETICS

Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.

RETRO-FITTABLE (MS-RA55)

The MS-RA60 is designed to fit in the MS-RA55 mounting profile, eliminating the need to alter your existing cutout, reducing complexity when upgrading your stereo system.

Multiple source options

Take advantage of the multiple source options available, including Bluetooth technology, DAB+ radio, AM/FM radio and AUX connection.

BUILT-IN DAB TUNER

The built-in DAB tuner supports the latest DAB and DAB+ broadcasts, allowing you to enjoy high-quality digital radio streaming wherever DAB and DAB+ are supported.

Product Specification

Overview Physical dimensions (H x W x D) 68 x 156.90 x 103.20 mm (2.68″ x 6.18″ x 4.06″) Weight 11.10 oz (316 g) Water rating IPX6 and IPX7 (front panel only, when properly installed) Power input 10.80-16 VDC Operating temperature range 32° to 122° F (0° to 50° C) Current (max.) 15 A Bluetooth wireless range Up to 30 ft (10 m) ANT wireless range Up to 10 ft (3 m) Wireless frequencies/protocols Bluetooth 2.40 GHz @ 12 dBm nominal Compass-safe distance 5.90″ (150 mm) Stereo features Display 2.30″ perimeter bonded monochrome dot matrix LCD Built-in amplifier Class-D (minimum 4 ohm impedance) Peak power 180 W Rated power output (4 Ohm) 22 W rms x 4 @ 14.40 V input, 4 ohm, 10 % THD Fusion-Link™ control Yes (with compatible Apple and Android devices) Fusion-Link Lite control Yes (with compatible Garmin watch) Multi-Zone™ technology 2 zones Bluetooth wireless technology Yes ANT wireless technology Yes DAB+ Yes (DAB tuner built in) Multi-language interface Dutch/English/French/German/Italian/Spanish Software updates Over-the-air software updates via Bluetooth wireless technology using the Fusion-Link app Warranty 3 year Sources Sources AM/FM/Bluetooth/AUX x1/DAB+ (available in Europe and Australia only) Connectivity Auxiliary input One RCA input (AUX) AM/FM radio One Motorola antenna connector port Speaker 4 x speaker connections (2 amplified zones) RCA Pre-out (left, right and subwoofer) 1 zone (requires external amplification) Line out Zone 1: L + R (requires external amplification) Subwoofer out Zone 1 (requires external amplification)
