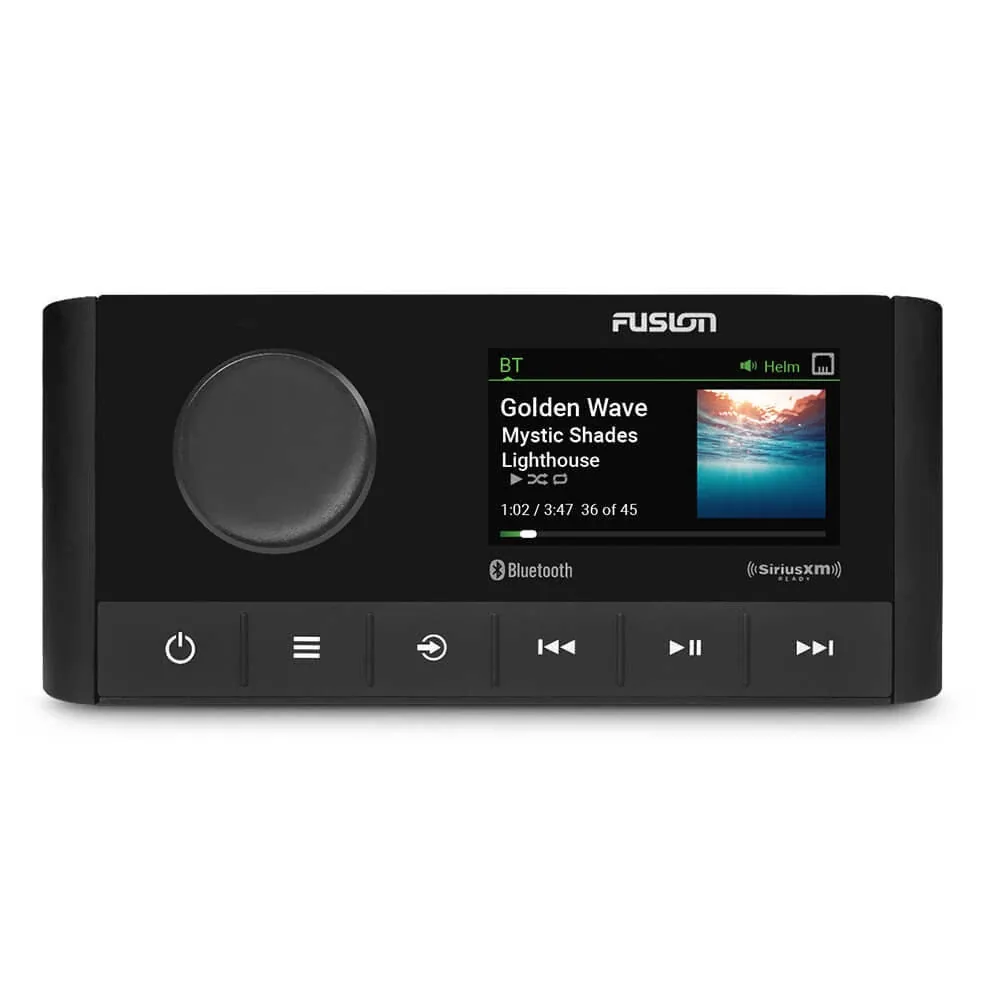

Fusion RA210 Marine Stereo Entertainment System with Bluetooth and DSP

IPX6 AND IPX7 INGRESS PROTECTION

Developed and engineered for the extreme marine environment, the MS-RA210 stereo has an IPX6 and IPX7 rated water-resistant front panel to perform and last on board.

MODERN DESIGN AND AESTHETICS

Offering uniformity throughout the helm, the black front face blends effortlessly into black glass panels, complementing other electronics and MFDs for a clean and elegant installation.

FUSION DIGITAL SIGNAL PROCESSING (DSP)

A technically exceptional listening experience made simple, Fusion DSP optimises the audio signal provided to your Fusion system to produce superior audio quality at all|volume levels, in every listening environment.

EASY-TO-INSTALL DSP PROFILES

Setting up your DSP profiles is straightforward with the free Fusion-Link ™ app2. With simply a couple of steps on your compatible smartphone, you can set up the preconfigured DSP profiles once and enjoy listening to |premium audio customised for your ears and the environment.

Appreciate entertainment control with the Fusion-Link ™ App

Control your audio straight from an MFD with Fusion-Link wired technology

Control your audio right from your compatible Garmin watch with the Fusion-Link Lite app

Product Specification

General
Physical dimensions (H x W x D)	68 x 157 x 126.6 mm
Weight	350 g
Water rating	IPX6 and IPX7 (front panel only, when properly installed)
Power input	10.8-16 VDC
Operating temperature range	0° to 50° C
Current (max.)	15 A
NMEA 2000® LEN	1 (50 mA)
Bluetooth® wireless range	Up to 10 m
ANT wireless range	3 metres
Wireless frequencies/protocols	Bluetooth 2.4 GHz @ +12 dBm nominal ANT 2.4 GHz @ +7 dBm nominal
Compass-safe distance	150 mm
Stereo features
Display	2.7" optically bonded colour LCD
Built-in amplifier	Class-D (minimum 4 Ohm impedance)
Peak power	200 W
Rated power output (4 Ohm)	26 W rms x 4 @ 14.4 V input < 10% THD
Built-in Digital Signal Processing	Yes (with preconfigured DSP profiles)
Fusion-Link™ control	Yes (with MFD, smartphone and Garmin watch)
Multi-Zone™ technology	2 zones
Bluetooth wireless technology	Yes
ANT wireless technology	Yes
DAB+ ready	Yes (requires DAB100A antenna module)
NRX remote compatibility	Yes
Multi-language interface	Bulgarian, Chinese (Simplified/Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish,, Portuguese (BR/PT), Slovenian, Spanish, Swedish,, Thai, Turkish
Software updates	USB
Warranty	1 year
Sources
Sources	AM / FM / Bluetooth / USB audio / iPhone / iPod / AUX x1 / MTP / DAB+ ready (available in Europe and Australia only)
Connectivity
Auxiliary input	One RCA input (AUX)
NMEA 2000	One NMEA 2000 port
USB 2.0	One USB 2.0 port
AM/FM radio	One Motorola antenna connector port
Speaker	2 x speaker connections (2 zone amplified)
RCA pre-out (left, right and subwoofer)	2 zones (requires external amplification)
Line out	2 (1 x L + R per zone, requires external amplification)
Subwoofer out	1 x mono output (requires external amplification)
