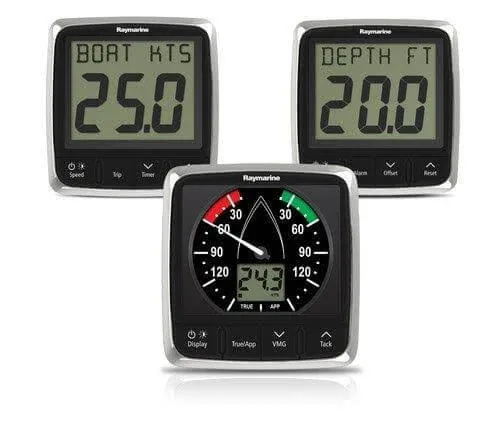

Raymarine Instrument i50 & i60 Wind, Speed, Depth Pack System

i60 Wind | i50 Speed | i50 Depth | Short Arm Vane Transducer with Inproved ST900 Transducer

The i50 Depth & i50 Speed Instrument Display are both stylish and compact, perfect for smaller powerboats, yachts and rigid inflatables. The i50 Speed gives you the ability to see speed and trip/log data, while the i50 Depth contains a depth trend indicator. These instrument displays both provide excellent viewing angles for both day and night conditions, push-button controls and extra-large digits making it extremely easy to see and use. Simple to install with a front mount design and capable of networking with other Raymarine Instrument and Multifunction Displays.

• i50 Depth | Displays minimum and maximum depth

• i50 Speed | Speed Through Water or Speed Over Ground (GPS required) & Trip and Log data

• LCD Display with red backlighting for enhanced night time visibility

• Network - SeaTalk & SeaTalkng | NMEA 2000 (compatible) interface

• Nominal Voltage 12v DC | Operating Voltage Range 10 - 16V DC

• Waterproof Rating - IPX6

• Including ST900/P120 Through Hull Transducer & P319 Low Profile Through Hull Transducer

The i60 Wind Instrument Display is a stylish and compact instrument designed for sailboaters, covering wind in both analogue and digital formats. The i60 Wind provides simple push-button controls and excellent viewing angles for both day and night. Built to compliment Raymarine Multifunction Displays and simple to install with its front-mount design.

• Analogue and digital wind data

• Calculates apparent (relative) and true wind speed/angle (true wind requires SeaTalk speed through water data)

• Stylish Display - Large Digits & Red backlighting for enhanced night time visibility

• Nominal Voltage - 12v DC | Operating Voltage Range - 10 to 16v DC

• Waterproof Rating - IPX6

• Networking - 2 x SeaTalkng

• Including Short Arm Vane Transducer

MANUALS & GUIDES

i50 Speed | i50 Depth

Installation and Operation Instructions	Mounting Template

SeaTalkng Reference Manual

i60 Wind

Installation and Operation Instructions
