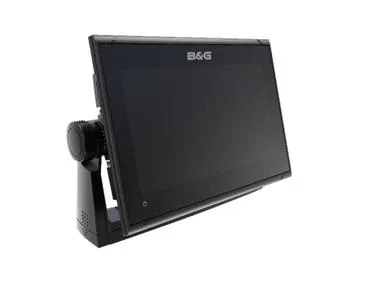

B&G Vulcan 9

Key Features

• 9" easy-to-use multi-touch display, 800 x 480 resolution
• Dedicated sailing features - SailSteer, SailingTime, RacePanel and Laylines
• Integrated CHIRP sonar with DownScan and ForwardScan via a single 9-pin transducer connector
• Broadband Radar and ForwardScan ready for easy expansion
• Integrated Wi-Fi for wireless data, chart and software updates
• Control your B&G autopilot directly from the display
• NMEA 2000 instrument data display
• Supports Navionics, C-MAP, Insight and NV Digital charts

Specifications

Display Size	9 inches
Display Resolution	800 x 480 px
Screen Brightness	1200 nits
Viewing Angles	80 horizontal / 80 vertical
Dimensions (no bracket)	243 x 171 x 83 mm (9.56 x 6.71 x 3.26 in)
Weight	1.32 kg (2.9 lb)
Power Consumption	Typical 12 W, Max 20 W
Supply Voltage	12 V DC (10 - 17 V DC min-max)
Recommended Fuse	3 A
Waterproof Rating	IPX6 and IPX7
Operating Temperature	-15C to +55C
Connectivity	Integrated Wi-Fi, NMEA 2000
Sonar	Integrated CHIRP, DownScan and ForwardScan via single 9-pin Xsonic connector
Cartography	Navionics (Gold/NAV+/Platinum+), C-MAP (MAX N/MAX N+), Insight, NV Digital
Waypoints / Routes / Tracks	6,000 waypoints, 500 routes (100 points max), 50 tracks (up to 12,000 points)
Warranty	2 years

FAQs

Vulcan is available in 7" and 9" displays. This listing is the 9" model.

Vulcan is B&G's entry-level chartplotter, offering the core sailing features (SailSteer, RacePanel, Laylines) in a simpler, more affordable package. Zeus SR and Zeus S add a faster processor, larger screen options and additional integration for larger boats and more advanced setups.

2 years manufacturer warranty.
