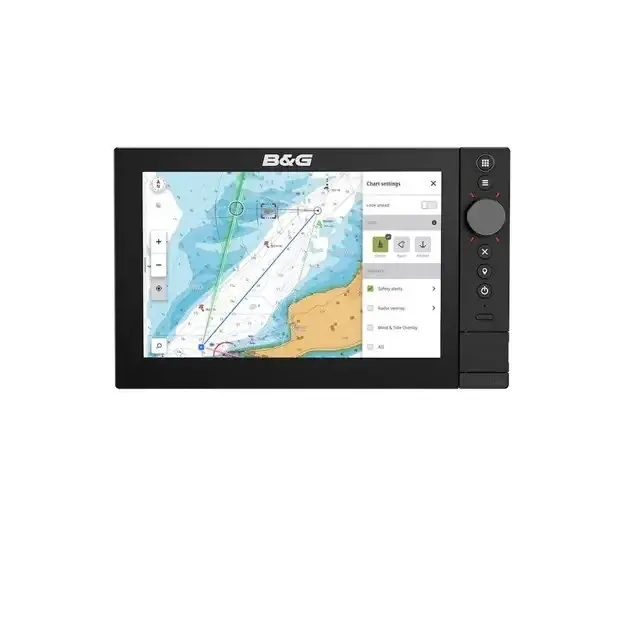

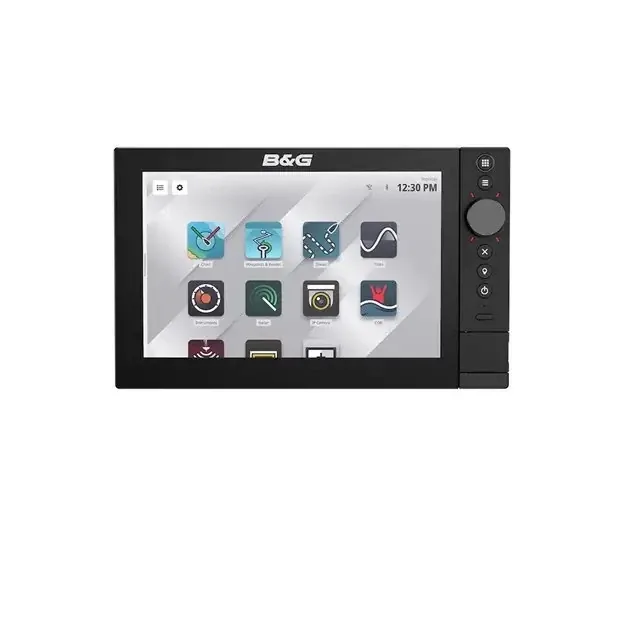

B&G Zeus SR - 16" Chartplotter

Key Features

• SolarMAX IPS touchscreen, viewable from all angles, even with polarised glasses
• Separate modes for Cruising, Racing and Anchoring
• Award-winning sailing features: SailSteer, LayLines, Routes and StartLine
• Compatible with C-MAP DISCOVER X and REVEAL X charts, plus 12 months premium B&G App subscription when you register a C-MAP X chart
• C-MAP powered Safety Alerts
• Full integration with HALO radars, B&G Sailing Processors, Autopilots, Triton2, Nemesis instruments, wind sensors and more
• Wi-Fi 5, Gigabit Ethernet and NMEA 2000 networking, supports up to 4 IP video cameras
• Set-up wizard to get you up and running quickly
• 1920 x 1080 high resolution display, over 1200 nits brightness, 80 degree viewing angles

• Expert local advice on whether the 10", 12" or 16" Zeus SR suits your helm

Who This Suits

Sailors who want the full Zeus sailing feature set - SailSteer, LayLines, StartLine and C-MAP X charting - in a standard-format, budget-friendly display. A practical alternative to the bezel-free Zeus S Ultrawide or the full glass helm Zeus3S range for owners who don't need the premium display formats.

Specifications

Display Size	16 inches
Display Resolution	1920 x 1080 px
Screen Brightness	>1200 nits
Viewing Angles	80° top/bottom/left/right
Dimensions (with bracket)	453.4 x 266.4 x 88.6 mm (17.85″ x 10.49″ x 3.49″)
Dimensions (display only)	423.5 x 241.6 x 88.6 mm (16.67″ x 9.51″ x 3.49″)
Weight	3.8 kg (8.38 lb)
Compass Safe Distance	65 cm (2.1 ft)
Power Consumption	Max 43.5 W
Supply Voltage	12/24 V DC (10 - 31.2 V DC min-max)
Waterproof Rating	IPX6 and IPX7
Connectivity	Wi-Fi 5, Gigabit Ethernet, NMEA 2000, Bluetooth 4.0
Sonar Compatibility	No built-in echosounder. Compatible with network sonar modules S3100, S5100 and other MFDs with echosounder ports
Cartography	Worldwide basemap included (not for navigation). Detailed chart card required
Warranty	2 years

FAQs

10", 12" and 16".

No built-in echosounder. Compatible with B&G network sonar modules (S3100, S5100) or other MFDs with echosounder ports.
