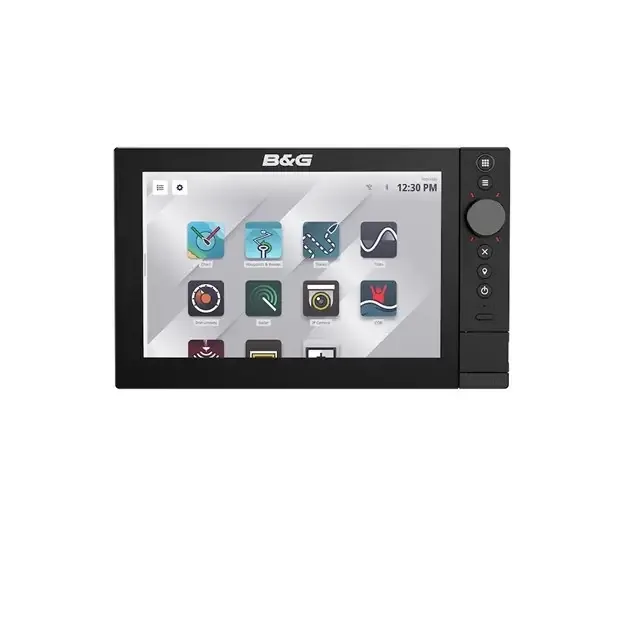

B&G Zeus SR - 10" Chartplotter

Key Features

• SolarMAX IPS touchscreen, viewable from all angles, even with polarised glasses
• Separate modes for Cruising, Racing and Anchoring
• Award-winning sailing features: SailSteer, LayLines, Routes and StartLine

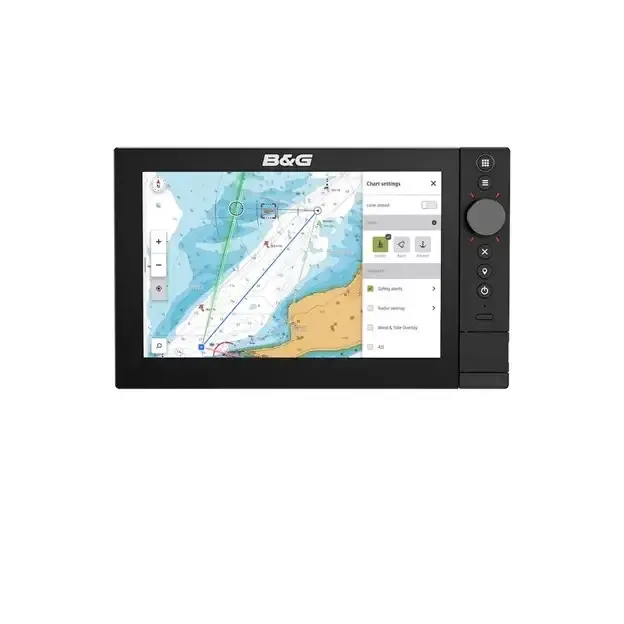

• Compatible with C-MAP DISCOVER X and REVEAL X charts, plus 12 months premium B&G App subscription when you register a C-MAP X chart
• C-MAP powered Safety Alerts
• Full integration with HALO radars, B&G Sailing Processors, Autopilots, Triton2, Nemesis instruments, wind sensors and more
• Wi-Fi 5, Gigabit Ethernet and NMEA 2000 networking, supports up to 4 IP video cameras
• Set-up wizard to get you up and running quickly
• 1280 x 800 resolution display, over 1200 nits brightness, 80 degree viewing angles

• Expert local advice on whether the 10", 12" or 16" Zeus SR suits your helm

Who This Suits

Sailors who want the full Zeus sailing feature set - SailSteer, LayLines, StartLine and C-MAP X charting - in the most compact, budget-friendly display in the range. A practical alternative to the bezel-free Zeus S Ultrawide or the full glass helm Zeus3S range for owners who don't need the premium display formats.

Specifications

Display Size	10 inches
Display Resolution	1280 x 800 px
Screen Brightness	>1200 nits
Viewing Angles	80° top/bottom/left/right
Dimensions (with bracket)	315.8 x 196.5 x 79.6 mm (12.43″ x 7.73″ x 3.13″)
Dimensions (display only)	287.9 x 176.1 x 79.6 mm (11.33″ x 6.93″ x 3.13″)
Weight	1.8 kg (3.97 lb)
Compass Safe Distance	35 cm (1.15 ft)
Power Consumption	Max 28 W
Supply Voltage	12/24 V DC (10 - 31.2 V DC min-max)
Waterproof Rating	IPX6 and IPX7
Connectivity	Wi-Fi 5, Gigabit Ethernet, NMEA 2000, Bluetooth 4.0
Sonar Compatibility	No built-in echosounder. Compatible with network sonar modules S3100, S5100 and other MFDs with echosounder ports
Cartography	Worldwide basemap included (not for navigation). Detailed chart card required
Warranty	2 years

FAQs

10", 12" and 16".

No built-in echosounder. Compatible with B&G network sonar modules (S3100, S5100) or other MFDs with echosounder ports.
