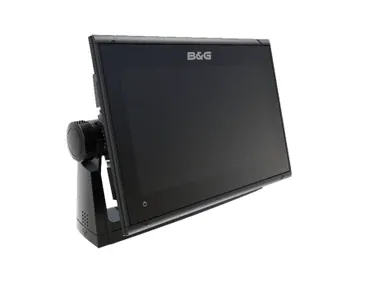

B&G Vulcan 9 NO XDCR

Key Features

• 9" multi-touch sunlight-readable display
• SailSteer, SailingTime, RacePanel and Laylines sailing tools
• CHIRP sonar, DownScan and ForwardScan ready (transducer required, sold separately)
• Built-in Wi-Fi for app connectivity and chart updates
• NMEA 2000 connectivity for autopilot and instrument integration
• Supports Navionics, C-MAP, Insight and NV Digital charts
• IPX6 and IPX7 waterproof rated

• Genuine B&G warranty support

Who This Suits

This NO XDCR (no transducer) version suits boats that already have a compatible B&G or Airmar transducer installed, or where a specific transducer type is needed for the hull. If you need a complete package with transducer included, ask us about the standard Vulcan 9 bundle.

Specifications

Display Size	9 inches
Display Resolution	800 x 480 px
Screen Brightness	1200 nits
Viewing Angles	80 degrees
Dimensions	243 x 171 x 83mm (9.56 x 6.71 x 3.26 in)
Weight	1.32 kg (2.9 lb)
Power Supply	12V DC (10-17V)
Power Consumption	Max 20W / Typical 12W
Waterproof Rating	IPX6 & IPX7
Operating Temperature	-15C to +55C
Connectivity	NMEA 2000, Wi-Fi
Sonar	CHIRP, DownScan, ForwardScan ready (transducer sold separately)
Cartography	Navionics, C-MAP, Insight, NV Digital
Waypoints / Routes / Tracks	6000 / 500 / 50
Warranty	2 years

FAQs

The Vulcan range is available in 7" and 9" displays, both available with or without a transducer.

Yes, the Vulcan 9 supports Broadband 3G/4G Radar via NMEA 2000/Ethernet expansion.
